Mobile Transmission Equipment 20 Watt COFDM HD Wireless Video
Transmitter H.265
Long range mobile transmission system Introduction:
DS-HDT20WG is a new arrival digital wireless video audio
transmitter which adopts the latest technologies of COFDM
modulation and H.265/H.264 image compression that enables good NLOS
(Non line-of -sight) transmission with DVD quality video. The
transmitter is compact size with strong power amplifier for
longer-range transmission.Good heat resistant with three cooling
fans. Be safety with AES128/256bits. Work well in fast-moving
transmission and obstruction environment.
Specifications:
| Modulation | CODFM |
| DC input | DC12V-DC14V |
| Working Current | ≤4.7A@DC12V |
| Constellation | QPSK,16QAM,64QAM (optional) |
| FEC | 1/2,2/3,3/4,5/6,7/8 (optional) |
| Carrier | 2K |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Frequency | 138Mhz ~ 4400MHz (available) |
| RF power output | 10~20W (available) |

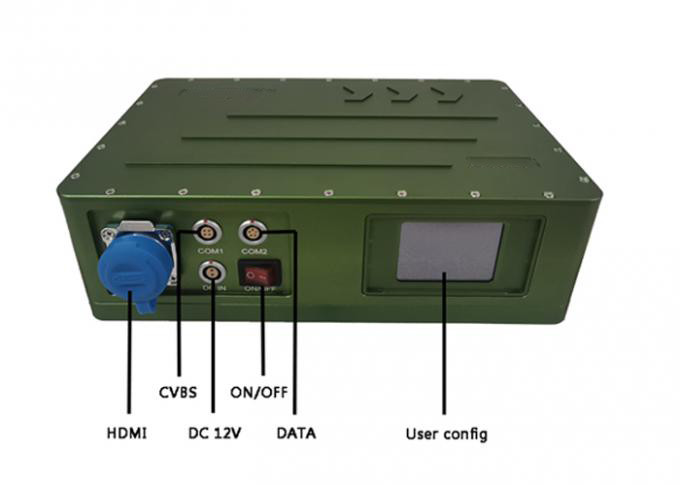

| A/V interface | HD-MI/SDI/CVBS (option) |

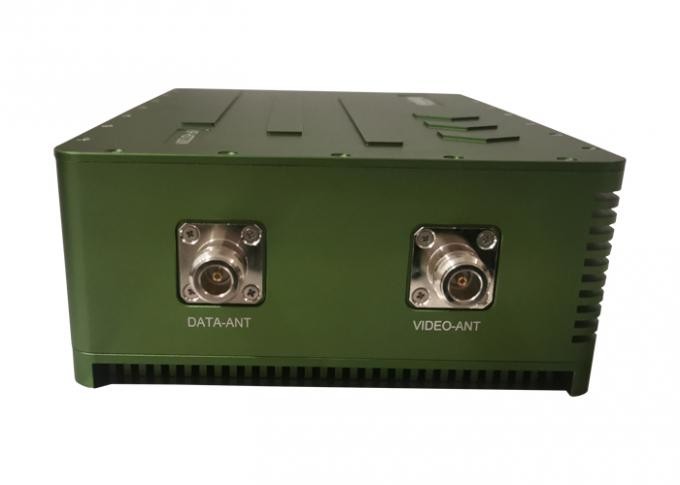

| RF interface | N type |
| Flatness | ≤2dB(within full frequency range), ≤0.5dB(within 8MHz) |
| Video Harmonic | 1Vp-p @ 75Ω, NTSC/PAL adaptive |
| CBER | <2.0E-4 |
| Video Compression | H.265/H.264/MPEG-4 |
| Resolution | 1080P/720P |
| Video Rate | 6Mbps |
| Work environment | -30~70°C |
| Dimension | 220*140*66mm |
| Weight | 2.3kg |
COFDM Digital Transmitter Feature:
- COFDM modulation, Stable transmission
- MPEG-4/H.264/H.265 video compression, DVD video quality
- Strong casing with built-in two cooling fans
- Mobile and NLOS transmission
- Great security by encryption of AES 128 bits
- Low system latency
- Modular design, compact structure, OEM design
- Can be customized to add additional features, such as HD-MI/HD-SDI,
data port, Ehernet and etc..

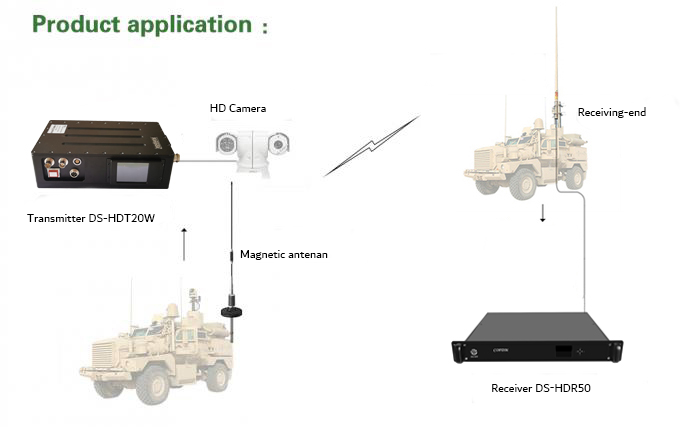

Application:
This special designed system is for long range distance for any AV
equipments , has been widely used in Police Forces, First
Responders, Security Services, Fire Services, Port Security,
Homeland Security, Traffic Management, Police Technical Support
Units, Special Forces, Military Command and Control Posts, Airport,
Border Control, Major Incident Support.
Receiver parameters:
Product Features:
- HD 1080P receiver;
- Supported multi-socket output;
- Transmit video and audio signal simultaneously.
- Can be with RS485/RS232 data control together.
- Rack design,easy to installed in Car
Specifications:
| DC Input | DC11V~DC16V |
| Working Current | ≤1.1A@DC12.5V |
| Receiving sensitivity | ≤-102dBm @ /4MHz, ≤-95dBm @ /8MHz |
| BER | BER≤1×10-4 |
| Frequency input range | 300MHz~--470MHz |
| Input interface | N(type),Dual antenna diversity reception technology |
| Modulation | COFDM |
| RF bandwidth | 4/8MHz (adjustable) |
| Constellation | QPSK,16QAM,64QAM (optional) |
| Encryption | AES 128/265 bit / ALLTECH Basic scrambling |
| FEC | 1/2,2/3,3/4,5/6, 7/8 (optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Carrier | 2K |
| Video formats and amplitude | PAL/NTSC, 1Vp-p/75Ω |
| Video compression | H.265/H.264/MPEG-4(autoadaptation) |
| Decode code stream rate | 0.5-12Mbps |
| Video output interface | Composite video RCA,HD,ASI,HD-SDI(alternative) |
| Interrupt recovery | Better than 2S |
| Video channel characteristic | Differential gain DG≤1.5%, Differential phase DP≤1° |
| Audio output | Left and right channel and stereo |
| Dimension | 440*340*65mm(1U chassis) |
| Weight: | 1.5kg |
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video
transmitter, radio data transceiver, and transmitter receiver OEM
main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in
China, major in communication engineering. We believe that wireless
communication will keep on developing in professional markets in
the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for
customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of
Analysis / Conformance; Country of Origin, and other export
documents where required.
