2.4Ghz Wireless Digital Video Transmitter with AES Encryption 10km NLOS Transmission

    Buy cheap 2.4Ghz Wireless Digital Video Transmitter with AES Encryption 10km NLOS Transmission from wholesalers

    Buy cheap 2.4Ghz Wireless Digital Video Transmitter with AES Encryption 10km NLOS Transmission from wholesalers
    • Buy cheap 2.4Ghz Wireless Digital Video Transmitter with AES Encryption 10km NLOS Transmission from wholesalers
    • Buy cheap 2.4Ghz Wireless Digital Video Transmitter with AES Encryption 10km NLOS Transmission from wholesalers

    2.4Ghz Wireless Digital Video Transmitter with AES Encryption 10km NLOS Transmission

    Ask Lasest Price
    Brand Name : Dingshen
    Model Number : DS-HDT20WG
    Price : Negotiaiton
    Payment Terms : T/T
    Supply Ability : 300pcs per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    2.4Ghz Wireless Digital Video Transmitter with AES Encryption 10km NLOS Transmission

    2.4Ghz Wireless Digital Video Transmitter with AES Encryption 10km NLOS Transmission


    High power wireless video link specifications:


    ModulationCODFM
    DC inputDC12V-DC14V
    Working Current≤4.7A@DC12V
    ConstellationQPSK,16QAM,64QAM (optional)
    FEC1/2,2/3,3/4,5/6,7/8 (optional)
    Carrier2K
    Guard Interval1/32,1/16,1/8,1/4 (optional)
    Frequency138Mhz ~ 4400MHz (available)
    RF power output10~20W (available)
    A/V interfaceHD-MI/SDI/CVBS (option)
    RF interfaceN type
    Flatness≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
    Video Harmonic1Vp-p @ 75Ω, NTSC/PAL adaptive
    CBER<2.0E-4
    Video CompressionH.265/H.264/MPEG-4
    Resolution1080P/720P
    Video Rate6Mbps
    Work environment-30~70°C
    Dimension220*140*66mm
    Weight2.5kg

    Introduction:


    DS-HDT20WG is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.265/H.264 image compression that enables good NLOS (Non line-of -sight) transmission with 1080P/I HD quality video.

    The transmitter is with compact size and strong power amplifier for stable signal and long range transmission. Good heat resistant with three cooling fans. Be safety with AES128/256bits. Work well in fast-moving transmission and obstruction environment.


    DS-HDT20WG supports RS232 signal and up to 150km wireless video link from drone/UAV to ground control station with high quality and stable image signal. It is also suitable for image transmission with the ground, and can be used in the fields of public security investigation, military operations, fire special robots, etc.


    COFDM Digital Transmitter Feature:


    • COFDM modulation, Stable transmission
    • MPEG-4/H.264/H.265 video compression, DVD video quality
    • Strong casing with built-in two cooling fans
    • Mobile and NLOS transmission
    • Great security by encryption of AES 128 bits
    • Low system latency
    • Modular design, compact structure, OEM design
    • Can be customized to add additional features, such as HD-MI/HD-SDI, data port, Ehernet and etc..

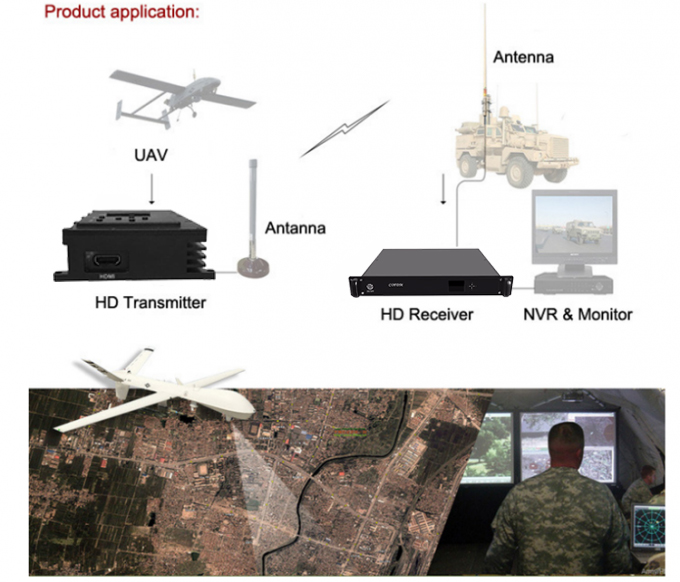

    Application:


    This special designed system is for long range distance for any AV equipments , has been widely used in Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support.
