    3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication

    Ask Lasest Price
    Brand Name : Dingshen
    Model Number : DS-HDT5000
    Price : Negotiaiton
    Payment Terms : T/T
    Supply Ability : 3,00pcs per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication

    Description

    Report Item

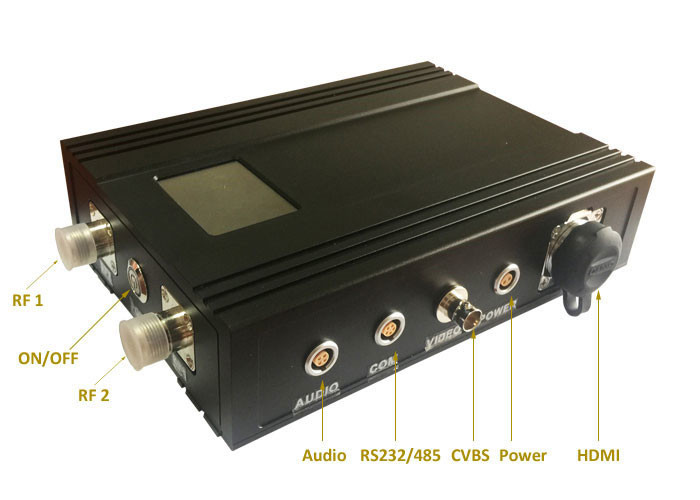

    3-5km NLOS COFDM HD Wireless Video Transmitter 2~5 Watt Long Range Vehicle Mobile Video Wireless Communication


    COFDM Video Transmitter Description:


    Model DS-HDT5000 is our powerful full HD AV signals transmitter, using the core of mobile communication technology COFDM, which can transmit good quality and stable Full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. 2-5W rf power output adjustable. Support full HD 1080P(1080i) H.264 encoding format and HDMI/HD-SDI inputs (single selection) as well support CVBS stereo balance audio input and narrowband transmission system.


    Features:

    ● COFDM modulation technology ensure the stability of signal

    ● Support FULL HD quality,1080i/P@30fps;

    ● Built-in with HD and BNC ports;

    ● Provide AES128 encryption for video safety.

    ● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;

    ● 2-5W RF power adjustable

    ● Low delay time

    ● With four holes at the bottom of the transmitter for fixed installation

    ● Widely used in helicopter shooting, Live broadcast and etc…


    Specification:


    Frequency300-900Mhz (option), or other band customized
    ModulationCOFDM
    Consumption<40W
    EncryptionAES 128 bits
    ConstellationQPSK(4QAM),16QAM,64QAM
    FEC1/2 2/3 3/4 5/6 7/8
    Guard Interval1/32 1/16 1/8 1/4
    Carrier2K,8K
    Bandwidth2/3/4/6/7/8MHz (option)
    Video rate200kps~20000kps (adjustable)
    RF power2~5W adjustable
    Video inputHDMI,CVBS,AHD,SDI (option)
    Video codingH.264/MPEG-4
    Video resolution1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
    Transmission distance80-100km LOS from air to ground; 1-3km NLOS on ground station
    Working voltageDC12V
    Working Temperature-20℃ -- +55℃
    Dimension220*150*60mm
    Weight1362g
    Antenna portN type

    3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication


    1080P HD Wireless Video Receiver with HDMI and CVBS output


    3-5km COFDM HD Video Transmitter 2~5 Watt Long Range Vehicle Mobile Wireless Communication

    Product Features:

    1. HD 1080P receiver;

    2. Supported multi-socket output;

    3. Transmit video and audio signal simultaneously.

    4. Can be with RS485/RS232 data control together.

    5. Rack design,easy to installed in Car


    Specifications:

    DC InputDC11V~DC16V
    Working Current≤1.1A@DC12.5V
    Receiving sensitivity≤-102dBm @ /4MHz, ≤-95dBm @ /8MHz
    BERBER≤1×10-4
    Frequency input range300MHz~4700MHz (option)
    Input interfaceN(type),Dual antenna diversity reception technology
    ModulationCOFDM
    RF bandwidth4/8MHz (adjustable)
    ConstellationQPSK,16QAM,64QAM (optional)
    EncryptionAES 128/265 bit / ALLTECH Basic scrambling
    FEC1/2,2/3,3/4,5/6, 7/8 (optional)
    Guard Interval1/32,1/16,1/8,1/4 (optional)
    Carrier2K
    Video formats and amplitudePAL/NTSC, 1Vp-p/75Ω
    Video compressionH.264/MPEG-4(autoadaptation)
    Decode code stream rate0.5-12Mbps
    Video output interfaceComposite video RCA,HDM-I,CVBS(alternative)
    Interrupt recoveryBetter than 2S
    Video channel characteristicDifferential gain DG≤1.5%, Differential phase DP≤1°
    Audio outputLeft and right channel and stereo
    Dimension440*340*65mm(1U chassis)
    Weight:1.5kg
