    H.265 Mini COFDM Transmitter , UAV video transmitter Low Delay 300-900MHz

    H.265 Mini UAV COFDM Video Transmitter Video and Data Low Delay High-speed Transmission

    Mini COFDM UAV Video Transmitter Description:

    Model DS-HDT1W is our powerful full HD av signals transmitter,using the core of mobile communication technology COFDM,which can transmit good quality and stable Full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. 2-5W rf power output adjustable.Support full HD 1080P(1080i) H.265 encoding format and HDMI/HD-SDI inputs (single selection) as well support CVBS stereo balance audio input and narrowband transmission system.

    Features:


    ● 1W rf power adjustable

    ● COFDM modulation technology ensure the stability of signal

    ● Support FULL HD quality,1080i/P@30fps;

    ● Built-in with HD and BNC ports;

    ● Provide AES128 encryption for video safety.

    ● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;

    ● Low delay time

    ● With four holes at the bottom of the transmitter for fixed installation

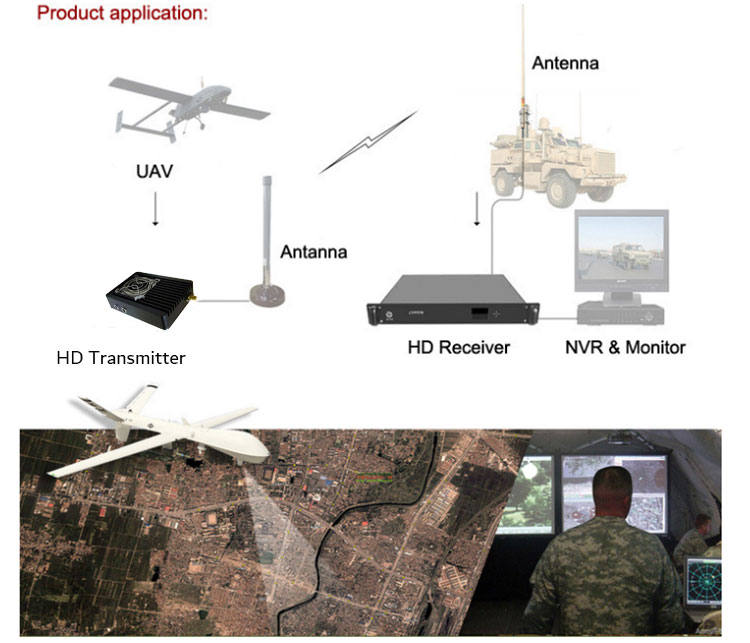

    ● Widely used in helicopter shooting, Live broadcast and etc…


    Transmitter parameter:


    ModulateCOFDM
    Working voltageDC12V
    Working current≤6A@DC12V
    RF bandwidth2/4/6/8MHz (adjustable)
    Frequency300-900Mhz or other frequency customized
    Output power1W
    Video inputHDMI/SDI; CVBS
    Data input (option)RS232/TTL, up to 115200bps
    Video resolution1920*1080P/I@60fps; 1280*720P/I@60fps
    Video codingMPEG-2/H.264/H265
    Video rate512Kbps-16Mbps (adjustable)
    EncryptionAES 128 bits
    AV input1Vp-p, 75Ω. Left and right channel
    Video systemPAL/NTSC
    Power flatnessFull band ≤1.5dB
    CNR≥25dBc@48dBm
    Second harmonic≥60dBc
    CBER<2.0E-4
    VBER<1.0E-7
    MER32dB
    Carrier2k 4k 8k
    ConstellationQPSK,16QAM,64QAM (option)
    FEC1/2, 2/3, 3/4, 5/6, 7/8 (option)
    Guard Interval1/32, 1/16, 1/8, 1/4 (option)
    Working Temperature-25°C~55°C
    Dimension130*100*43mm
    Weight660g

    External modulation display:



    Rack-mounted type COFDM HD Video Receiver

    Receiver parameter:


    Frequency170-900MHz, VHF&UHF
    Bandwidth2/3/4/5/6/7/8MHz (option)
    RF input level-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
    RF input impedance50Ω
    RF input typeN type
    ModulationCOFDM
    ConstellationQPSK,16QAM,64QAM(adjustable)
    FEC1/2,2/3,3/4,5/6,7/8(adjustable)
    Carrier2k
    Guard Interval1/32,1/16,1/8,1/4(adjustable)
    Video codingMPEG-2/H.264MP@ML
    Screen4:3 16:9
    Video resolution1080P@4MHz
    Audio outputStereo unbalance 300/ 200mv
    AV output2 Audio output + 2 Video output. SDI/HDMI/ASI
    Working voltageAC220V/DC12V <1A
    working temperature-20℃~+50℃
    Dimension480*260*45(1U chassis)
    Weight1.5kg
