    20km Long Range Digital Wireless Video Transmitter And Receiver With Low Latency

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT20WG
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 3,000pcs per month
    Delivery Time : 3-7 works days
    • Product Details
    • Company Profile

    20km Long Range Digital Wireless Video Transmitter And Receiver With Low Latency

    High Light:

    20km Wireless Video Transmitter And Receiver

    ,

    DC14V COFDM Video Transmitter

    ,

    Low Latency COFDM Video Transmitter


    20km Long Range Digital Wireless Video Transmitter and Receiver with Low Latency


    Real-time mbile wireless av transmitter Description:


    DS-HDT20WG is a powerful COFDM wireless video audio transmitter designed from Ding Shen Technology, it's adopts the latest COFDM modulation and narrow bandwidth at its core, which is enable to transmit 1080P/I full HD video quality in fast moving and NLOS (non-line-of-sight) environment.


    With 20 watt high RF power, DS-HDT20WG can easily to transmit 10~15km NLOS long distance wireless video and 1920*1080P high definition broadcast quality image in urban area; and 100km LOS from air to ground.


    The frequency, RF power, video input, and the housing of the KP-HDT20WG cofdm video transmitter all can be designed and customized based on user's application and requirement.


    Parameters:


    ModulationCODFM
    DC inputDC12V-DC14V
    Working Current≤4.7A@DC12V
    ConstellationQPSK,16QAM,64QAM (optional)
    FEC1/2,2/3,3/4,5/6,7/8 (optional)
    Carrier2K
    Guard Interval1/32,1/16,1/8,1/4 (optional)
    Frequency300MHz-900MHz; 1GHz-2.7GHz customized (50Mhz per interval as a frequency band)
    RF power output5-20W (adjustable)
    EncryptionAES128 bits user-defined password
    A/V interfaceRCA
    RF interfaceN type
    Flatness≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
    Video Harmonic1Vp-p @ 75Ω, NTSC/PAL adaptive
    CBER<2.0E-4
    Video CompressionH.265/H.264/MPEG-4
    Resolution1080P/720P
    Video Rate6Mbps
    Work environment-30~70°
    Dimension220*140*80MM
    Weight2.3kg

    Feature:


    • COFDM modulation, Stable transmission

    • H.265/H.264 video compression, DVD video quality

    • Strong casing with built-in two cooling fans

    • Mobile and NLOS video audio transmission

    • Great security by encryption of AES 128/256 bits

    • Low system latency

    • Modular design, compact structure, OEM design

    • Can be customized to add additional features, such as HDM-I/HD-SDI, data port, Ehernet and etc..

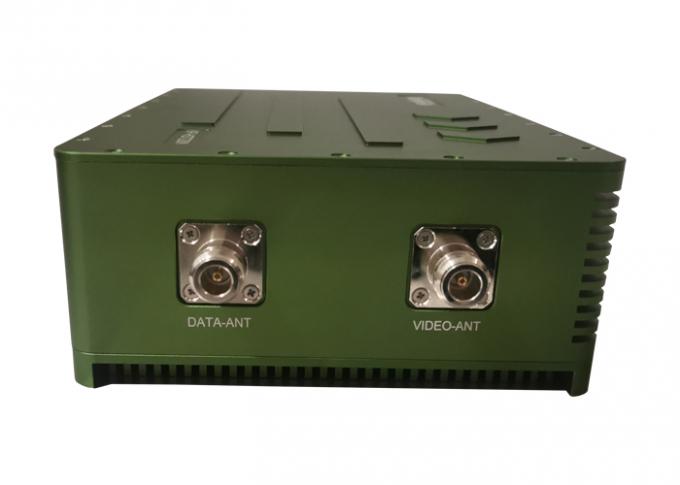

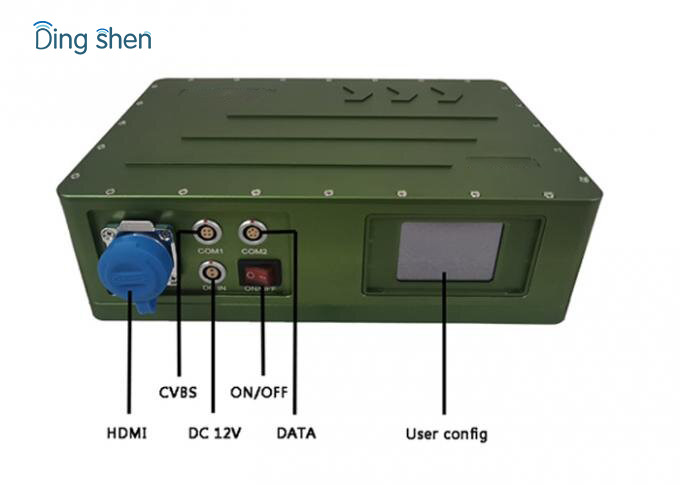

    20km Long Range Digital Wireless Video Transmitter And Receiver With Low Latency20km Long Range Digital Wireless Video Transmitter And Receiver With Low Latency
