Vehicle Mounted COFDM Video Transmitter 30km NLOS Low Delay AV
Sender
Long Distance Vehicle Video Transmitter Description:
The DS-CMTX100H Vehicle mounted low delay transmission equipmenent
is a powerful COFDM digital wireless video & data transmitter from
With the latest COFDM modulation, narrow-band, and H.264 encoder
technology as its code, the DS-CMTX100H COFDM HD video audio
digital transmitter sends high definition images ideal for
establishing rugged wireless video links in different environments,
like mobile and urban environments.

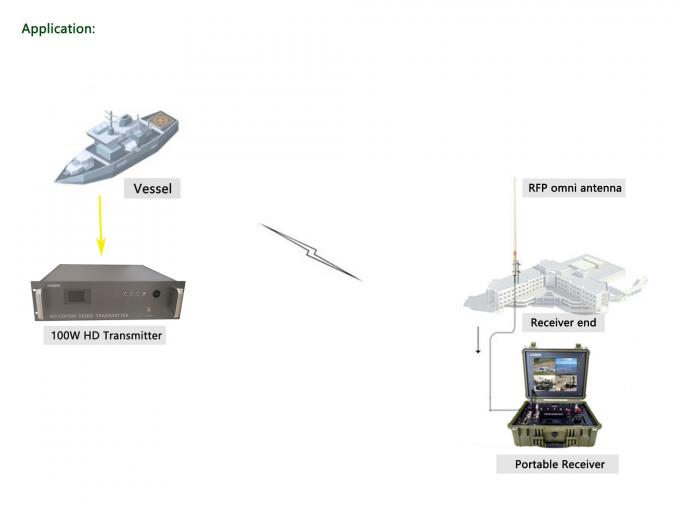

The high power and high definition makes the DS-CMTX100H COFDM
video transmitter ideal for large UAV super long range video
communication and mobile vehicle to vehicle, or mobile vehicle to
command center building wireless video communication applications,
enabling true long range HD video & data transmission.
Specification:
| Voltage | DC 28V |
| Bandwidth | 2/2.5/4/8MHz |
| Frequency video | 300MHz~900MHz, 1MHz increment; other Frequency can be customized |
| Frequency data (Option) | 433MHz or other band |
| Modulation | COFDM 2K |
| RF power | 60-100W (adjustable) |
| FEC | 1/2, 2/3, 3/4, 7/8 |
| Guard interval | 1/32, 1/16, 1/8, 1/4 |
| Video port | HDM-I /HD-SDI / CVBS |
| Data port (Option) | RS232 / RS485 |
| Video resolution | 1080P/i & 720P/i |
| Video coding | H.264/H.265 |
| Video format | PAL/NTSC |
| Encryption | AES128/256bits |
| Dimension | 480*460*135mm |
| Weight | 8.1kg |
| Parameter setting | user manually setting via touch screen |
Special features:
* 1080P high quality video images transmission
* strong safety with AES user-defined passwords
* ultra low latency, 100ms end to end
* 100 Watts high power and low latency
* support NLOS and fast moving environments but still in stable
signals transmission
* easy operation by digital panel configuration, and LCD display
* designed in military-grade level
* voice and video logn range transmission
