    IP communications two-way data video anti-jamming AES hopping function transmission mesh wifi security products

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-KD
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 3,000pcs per month
    Delivery Time : 3-7 works days
    • Product Details
    • Company Profile

    IP communications two-way data video anti-jamming AES hopping function transmission mesh wifi security products

    Product Introduction

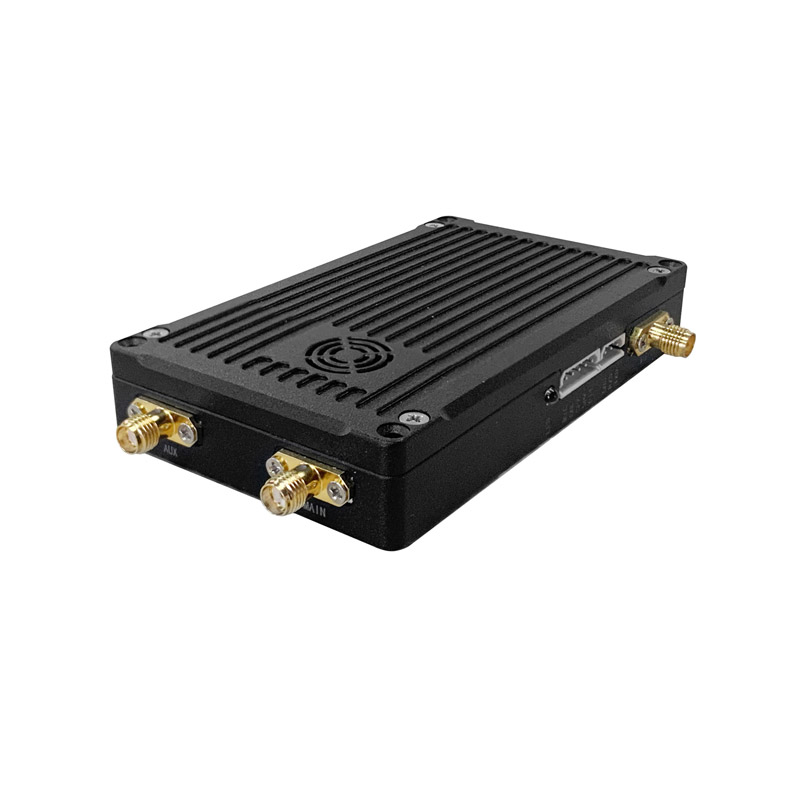

    DS - KD is a multi point to multi point broadband data transmission equipment.Support for multiple

    bandwidth allocation. This equipment based on TDD technology, using IP communications functions,

    it can be set up wireless local area network (LAN).Easy to realize two-way data and video transmission.

    With strong ability of anti-jamming, high confidentiality of signal transmission., etc.

    COFDM modulation as its core, allowing a group of mesh nodes to form a seamless and extremely secure private network in either line of sight (LOS) or none line of sight (NLOS) and fast moving conditions.
    With its strong hopping frequency feature, it can hop 1200 times per second, it is very suitable for uavs to realize anti-interference in the complex warfare environment, this feature makes telemetry data and remote video transmit more stably and safely

    IP communications two-way data video anti-jamming AES hopping function transmission mesh wifi security products


    Product Features

    Support WIFI connection and GPS/beidou positioning
    Support network interface transmission, build a remote local LAN
    Supports large bandwidth, point-to-point largest payload support 30 Mbps
    Support automatic frequency hopping function, can automatically search the best frequency point in wireless environment
    Support up to 33 dBi transmission power
    Support 3/ 5 /10 /20 MHZ bandwidth channel


    Application

    DS-KD supports duplex transmission and up to 50km wireless video downlink from drone/UAV to ground control station with high quality and stable image signal. It is also suitable for image transmission with the ground, and can be used in the fields of public security investigation, military operations, fire special robots, etc.


    IP communications two-way data video anti-jamming AES hopping function transmission mesh wifi security products


    Parameters


    Working frequency1427MHz~1450MHz
    Carrier bandwidth3/5/10/20MHz
    ModulationCOFDM
    InterfaceRJ45;serial port
    Resolution1080P, 720P
    Wired Receive Sensitivity20MHz -94dBm(10Mbps)
    20MHz -97dBm(5Mbps)
    10MHz -91dBm(10Mbps)
    10MHz -96dBm(5Mbps)
    5MHz -84dBm(10Mbps)
    5MHz -93dBm(5Mbps)
    3MHz -87dBm(5Mbps)
    3MHz -98dBm(2Mbps)
    Transmit power2*2W
    Networking capacity16 nodes
    Transmission rateA single node supports up to 30Mbps
    Multi-node adaptive and average system rate allocation
    EncryptionAES128
    Transmission Distance50KM LOS
    Rated working voltageTypical value: DC+12V, limit value: minimum DC+9v, maximum DC+15V
    Rated working voltage≤0.7A @ DC12V
    Impedance of RF Connectors50Ω
    Dimension105*65*16mm
    Weight154g
    Structural materialAluminium alloy 6061
    Surface treatment of structural partsNatural color of internal and external anodizing
    Working temperature-20℃~+55℃
    Storage Temperature-40℃~+85℃
    RH95% (40℃)
    Protection GradeIP65
