2.4Ghz 100mW Wireless Video Transmitter AV Output 4CHs Analog
Sender
Small wireless video transmitter Description:
Ding Shen is the wireless security provider of choice for police
departments, private investigators, UAV hobbyist, and federal
agencies nationwide, in large part due to our range of wireless
video transmission devices. Our selection of state-of-the-art
wireless video transmitters and receivers, wireless video links,
antennas, and wireless sensors, are designed so you can place your
cameras where you need them, without the concern of running video
cable.
Our wireless video receiver and transmitter options are used for a
variety of demanding applications, including long range wireless
video transmission and remote video surveillance. Our 1.2 GHz / 2.4
GHz / 5.8 GHz wireless links offer a cost-effective and scalable
wireless solution; these wireless access points let you send
multiple camera signals to a single receiver, reducing overall
system cost.
Whatever your wireless surveillance application or budget, we can
find the right solution for you. Contact us! We can customize any
solution to fit your requirements.
Specification:
| Voltage | DC 12V |
| Frequency | 2.4GHz |
| Number of channels | 4 Channels |
| Transmit Power | 100mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 100m |

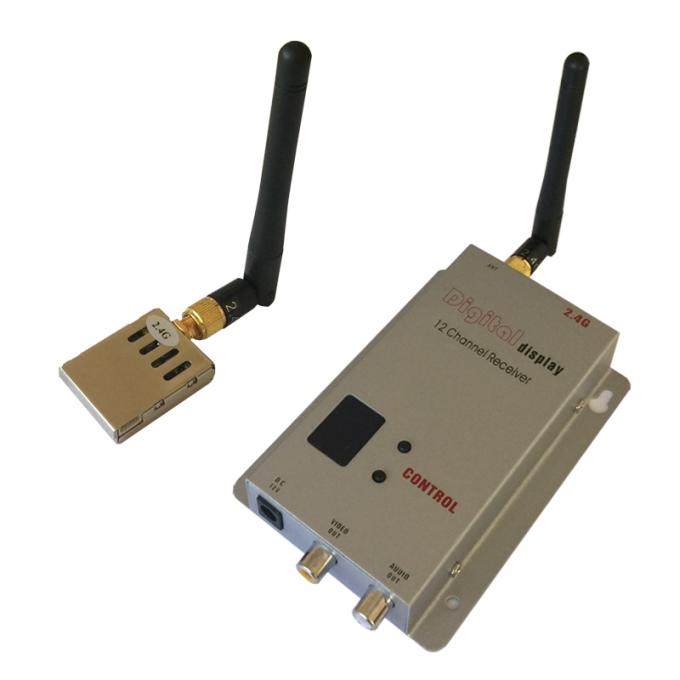

| Overall Configuration | Transmitter, receiver, video cable, power supply, antenna |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 16g |
| Receiver Weight | 120g |
| Dimensions (L * W * H) | Transmitter: 40*20*8mm. Receiver:116*80*21mm |
| Box size (L * W * H) | 245*160*65mm |
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special use in
military project.
Installing:
A. The line has 5 plugs for connecting transmitter, camera and
power supply
One of the line's points connecting to transmitter, another has 4
plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital
play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking
operation
C. Set the same channel with transmitter and receiver
