    17" LCD Wireless Ground Station 138-4400MHz Briefcase COFDM Digital Receiver

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-BST01
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 3,000pcs per month
    Delivery Time : 3-7 works days
    • Product Details
    • Company Profile

    17" LCD Wireless Ground Station 138-4400MHz Briefcase COFDM Digital Receiver

    17" LCD Wireless Base Station 138-4400MHz Briefcase COFDM Digital Receiver


    Introduction:


    Such a new design of COFDM wireless microwave AV data transmission system is special for UAV/drone long flight time surveillance ground control.


    It adopts robust Pelican outer case, and ultrabright 17" Samsung LCD screen, which performs well in outside and daytime. With the latest COFDM chip modulation, the ground station receiver has the advantages of stable and robust signal receiving, and supporting mobility receive under high speed moving condition.


    Designed with camera control joystick, COFDM receiver is easy to control the analog/digital/thermal camera on UAV. Designed with flight control joystick, the COFDM groung station is easy for operator to control the UAV flying.



    Features:


    1. COFDM modulation
    2. MPEG-4/H.264 video compression
    3. Full hd resolution,very sharp image
    4. Modular design and highly integrated
    5. Support 1 channel av signals receiving at the same time.
    6. Dual aerial designed for better signal receive
    7. Built in with DVR.Standard 17inch Samsung LCD screen
    8. The left space for PC place easy to carry together with the RX
    9. Internal with 80G / 1TB SSD memory
    10. Can control operation system by using external mouse.
    11. Work well under fast moving signal receiving and support NLOS trasnsmission
    12. If add ethernet output that can support remote control,dynamic IP and can realize IE browsing.
    13. Extra USB insert easy to copy the video.

    14. With camera control joystick

    15. With flight control joystick


    Specification:

    Video frequency138-4400MHz (option),100MHz space max
    Data frequencyconfigured
    RF bandwidth2/2.5/4/8MHz(adjustable)
    Memoryembedded DVR, standard 80G SSD
    LCD monitor17 inch Samsung LCD screen
    RF Level Input-105dBm~-20dBm
    RF InterfaceN(F)
    Camera control data outputRS485
    Flight control data outputRS232
    Video outputBNC/HD/HD-SDI
    USB outputFor external memory use
    ModulationCOFDM
    Power supplyAC220V / DC12V
    ConstellationQPSK,16QAM,
    FEC1/2,2/3,3/4,5/6,7/8
    Guard Interval1/32,1/16,1/8,1/4
    Video format1 line PAL/NTSC video signal
    Video DecodingH.264/ MPEG-4MP@ML
    Resolution1920*1080 @60i/59i
    Audio Outputstereo left and right channel
    Data encryptionAES 128bits
    Operating environment-30~70° C
    Built in Battery30000mA,support 48 hours continuously recording
    Size927*355*152mm
    Weightappr. 23kg

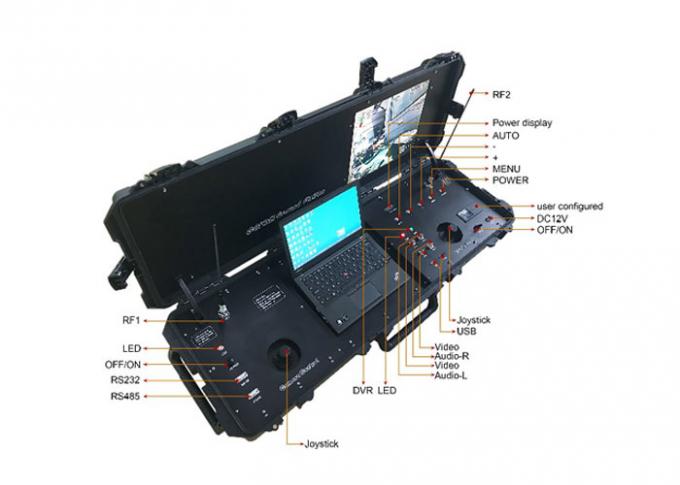

    Detailed Images

    17" LCD Wireless Ground Station 138-4400MHz Briefcase COFDM Digital Receiver


    17" LCD Wireless Ground Station 138-4400MHz Briefcase COFDM Digital Receiver
