2400Mhz Wireless Analog Video Transmitter and Receiver with 2000mW
12 Channels
- If you are seeking an equipment that can transmit the audio and
video to a long distance without cable, for example the villa,
small lake, bridge or some other open areas, this transmitter
system is the right one you need.
- This equipment will cover a long distance in the open area around
4Km, and 20km LOS fromo air to ground. But when there are obstacle
between the transmitter and receiver, it will be decided case by
case.
- This unit is the professional one and the signal is very strong in
2.4Ghz series that can be used to cover the long distance where
need strong signal and the industrial project.
Description:
Ding Shen wireless video transmission equipment is an excellent all
aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment. The use of
0dB (Original small antenna) in full to the antenna, the open area
to ensure the transmission 2000-4000m or so. And transmitter
technology is superb and the special metal is more conducive to
heat, more suitable for long hours of work. Signal input with
common AV interface, it can easily work with camera, VCD, DVD and
all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV system,
UAV, RC airplanes/helicopters, Video and Data signals at the same
time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special use in
military project.
Specification:
| Voltage | DC 12V |
| Frequency | 2.2G/2.3G/2.4G |
| Number of channels | 12 CHs |
| Transmit Power | 2000mW |
| Frequency band | 2.290Ghz; 2.310Ghz; 2.330Ghz; 2.350Ghz; 2.370Ghz; 2.390Ghz;
2.410Ghz; 2.430Ghz; 2.450Ghz; 2.470Ghz; 2.490Ghz; 2.510Ghz; |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 2000m-4000m |

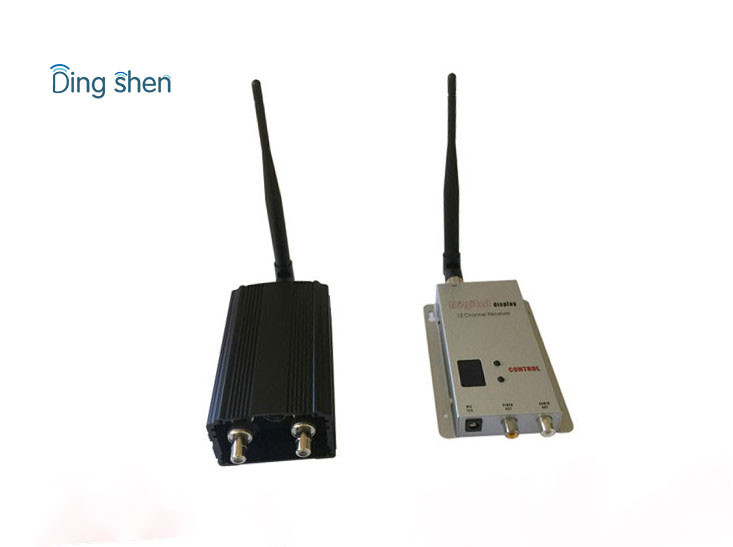

| Overall Configuration | Transmitter, receiver, AV cable, antenna |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 368g |
| Receiver Weight | 120g |

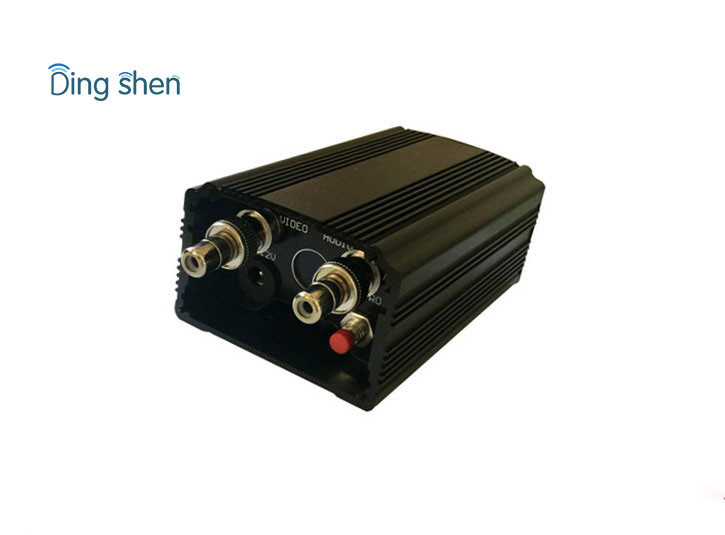

| Dimensions (L * W * H) | Transmitter:93*80*31mm. Receiver:116*80*21mm |
| Box size (L * W * H) | 245*160*65mm |
