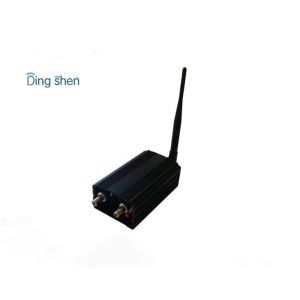

CCTV 2000mW High RF Power Long Range Wireless Video Transmitter For
Wireless Security System
CCTV Wireless Transmitter Description:
DS-A2 wireless video transmission equipment is an excellent all
aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment. The use of
0dB (Original small antenna) in full to the antenna, the open area
to ensure the transmission 2000~5000m or so, if the raising of the
high gain directional antenna, increased to 10KM away. And
transmitter technology is superb and the special metal is more
conducive to heat, more suitable for long hours of work. Signal
input with common AV interface, it can easily work with camera,
VCD, DVD and all other conventional AV interfaces compatible.
Features:
1. Small size, light weight, easy to carry, good installation
2. Responsive, timely, send and receive real-time transmission
3. Using FM mode, anti-interference ability, good image quality
4. Highly integrated, stable and reliable transmission distance
5. DC power supply, easy to use.
6. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special use in
military project.
Specification:
| Voltage | DC 12V |
| Current | 600mA |
| Frequency | 0.9G/1.2G/1.3G |
| Number of channels | 4CHs/8CHs Optional |
| Transmit Power | 2000mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 2000~5000M |
| Overall Configuration | Transmitter, receiver, AV cable, power supply, antenna |
| Temperature | -10℃ ~ +50℃ |
| Transmitter Weight | 388g |
| Receiver Weight | 120g |
| Dimensions (L * W * H) | Transmitter:111*67*60mm. Receiver:116*80*21mm |
| Box size (L * W * H) | 245*160*65mm |
Ding shen is specialized in COFDM, TDD and Analog wireless video
transmission products for over 10 years, including Wireless Video
Transmitter, HD Video Wireless Transmitter and Receiver, quality
UAV/UGV Wireless Video Transmitter, and CCTV Wireless Sender,
products are applied widely among Public Security Bureaus, Forest
Fire Prevention Departments, Maritime Bureaus, Oil Field,
Construction Sites, Tunnels, UAV, UGV, Automobiles and so on.
