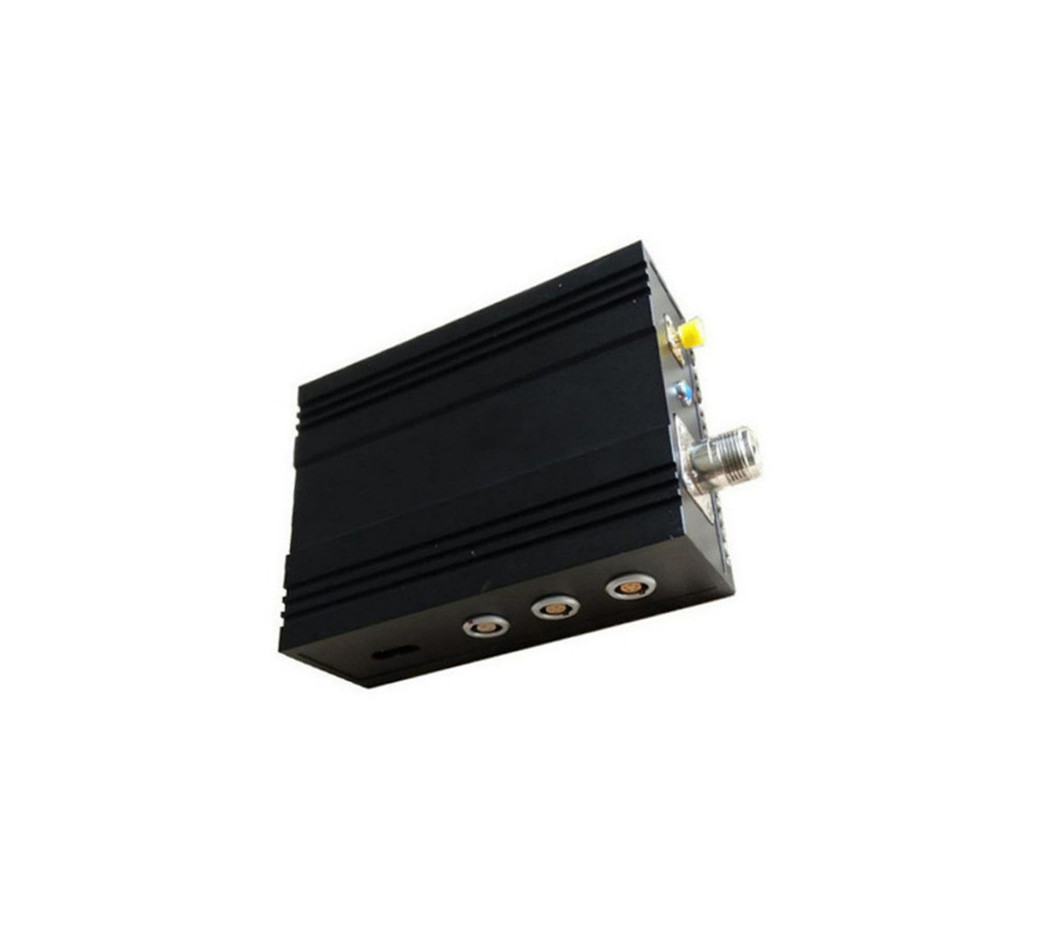

    Vehicle Mounted COFDM Video Transmitter 20W Output Power Modular Design

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT5000
    Price : >=1 Sets $4900
    Payment Terms : T/T
    Supply Ability : Quantity(Sets) 1 - 100000 >100000
    Delivery Time : 5-10 working days
    Certification : CE/FCC
    • Product Details
    • Company Profile

    Vehicle Mounted COFDM Video Transmitter 20W Output Power Modular Design

    COFDM wireless video transmitter 70km to100km long range ground station for UAV drone

    NLOS Long Range 70km to100km COFDM Long Range Wireless Video Transmitter for unmanned aerial vehicle transmits over 100km LOS and 1km to 3km nlos long range audio, video and images.

    Long Range Wireless Video Transmitter for unmanned aerial vehicle is with COFDM modulation, H.264 mpeg-4video compression and AES encryption .

    HD-MI or HD SDI Video input can be added, so that it can be made as a high definition HD-MI or HD SDI wireless video transmitter.

    COFDM wireless audio video transmitter is used for long range audio, video transmission, live broadcast and drone video shooting / recording.

    COFDM wireless video transmitter performs well in LOS / NLOS long range wireless transmission


    Introduction:


    This is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.265 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission.Good heat resistant with three cooling fans. Be safety with AES128/256bits. Work well in fast-moving transmission and obstruction environment.


    Specifications:


    ModulationCODFM
    DC inputDC12V-DC14V
    Working Current≤4.7A@DC12V
    ConstellationQPSK,16QAM,64QAM (optional)
    FEC1/2,2/3,3/4,5/6,7/8 (optional)
    Carrier2K
    Guard Interval1/32,1/16,1/8,1/4 (optional)
    Frequency138-4400MHz (available)
    RF power output10-20W
    A/V interfaceRCA
    RF interfaceN type
    Flatness≤2dB(within full frequency range), ≤0.5dB(within 8MHz)
    Video Harmonic1Vp-p @ 75Ω, NTSC/PAL adaptive
    CBER<2.0E-4
    Video CompressionH.265/H.264/MPEG-4
    Resolution1080P/720P
    Video Rate6Mbps
    Work environment-30~70°
    Dimension220*140*80MM
    Weight

    2.3kg


    Vehicle Mounted COFDM Video Transmitter 20W Output Power Modular DesignVehicle Mounted COFDM Video Transmitter 20W Output Power Modular DesignVehicle Mounted COFDM Video Transmitter 20W Output Power Modular Design
