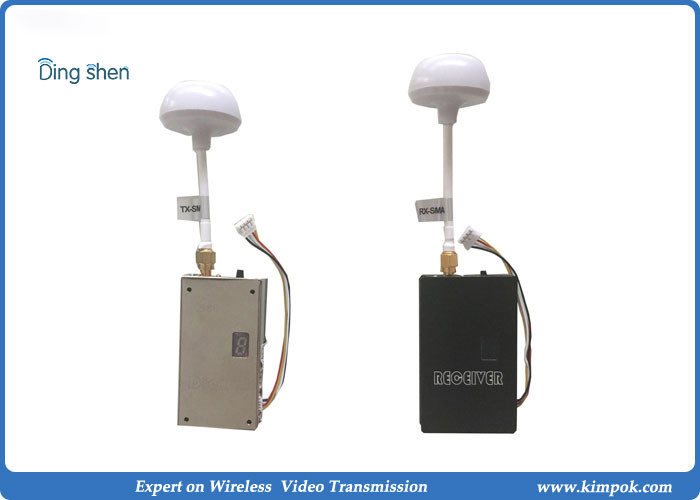

1.2Ghz Long Range Video Transmitter 2500Mw Wireless Video Sender
with High RF Power
1.2Ghz Video Transmitter Description:
DS-A25 wireless video transmission equipment is an excellent all
aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment. The use of
0dB (Original small antenna) in full to the antenna, the open area
to ensure the transmission 2000-4000m or so. And transmitter
technology is superb and the special metal is more conducive to
heat, more suitable for long hours of work. Signal input with
common AV interface, it can easily work with camera, VCD, DVD and
all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV system,
UAV, RC airplanes/helicopters, Video and Data signals at the same
time in cars of Unmanned Equipment.
Features:
- Wireless transmission: no need to set up communications cable
- Image, audio sync, color black and white compatible
- Small size, light weight, easy to carry, good installation
- Responsive, timely, send and receive real-time transmission
- Using FM mode, anti-interference ability, good image quality
- Highly integrated, stable and reliable transmission distance
- DC power supply, easy to use.
- Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special use in
military project.
Specification:
| Voltage | DC 12V |
| Current | 600mA |
| Frequency | 0.9G/1.2G/1.3G |
| Number of channels | 8CHs |
| Transmit Power | 2500mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 2000m-4000m |
| Overall Configuration | Transmitter, receiver, AV cable, power supply, antenna |
| Temperature | -10℃～+50℃ |
| Transmitter Weight | 104g |
| Receiver Weight | 120g |
| Dimensions (L * W * H) | Transmitter:93*52*20mm. Receiver:116*80*21mm |
| Box size (L * W * H) | 245*160*65mm |
Wireless Video Transmitter Installing:
A. The line has 5 plugs for connecting transmitter, camera and
power supply
One of the line's points connecting to transmitter, another has 4
plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital
play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking
operation
C. Set the same channel with transmitter and receiver
Ding shen is specialized in COFDM, TDD and Analog wireless video
transmission products for over 10 years, including Wireless Video
Transmitter, HD Video Wireless Transmitter and Receiver, quality
UAV/UGV Wireless Video Transmitter, and CCTV Wireless Sender,
products are applied widely among Public Security Bureaus, Forest
Fire Prevention Departments, Maritime Bureaus, Oil Field,
Construction Sites, Tunnels, UAV, UGV, Automobiles and so on.
