Summary

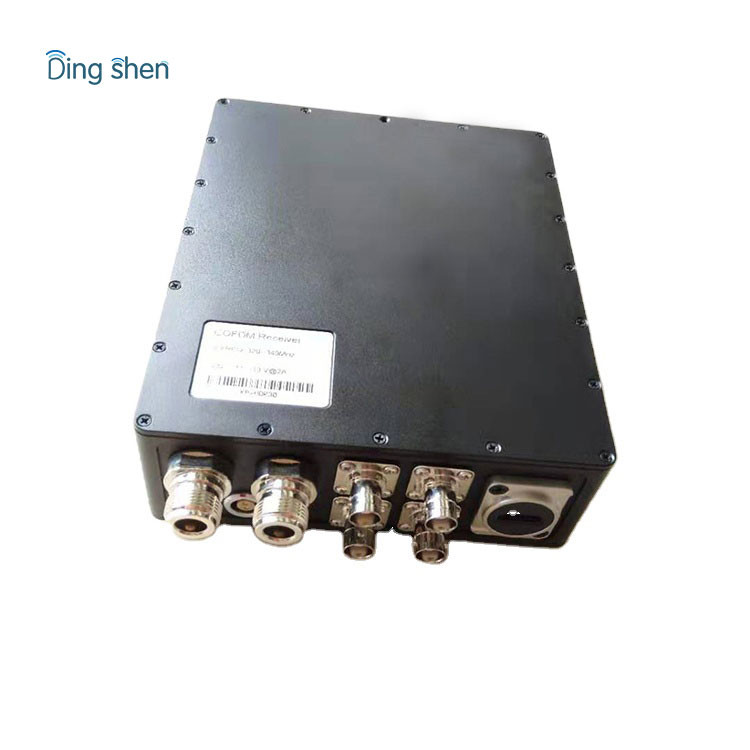

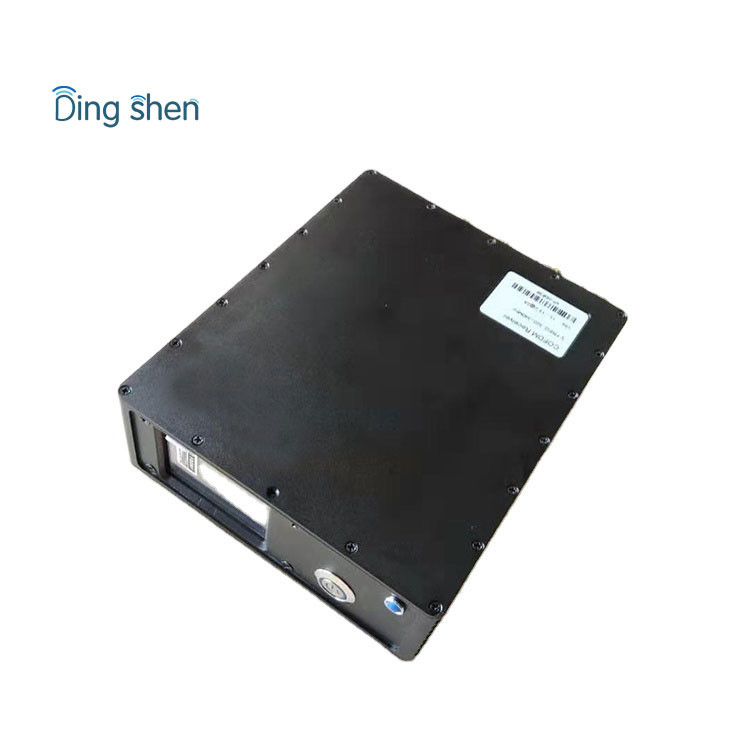

H.265 COFDM multi-channel IP video transmitter is a new launch digital transmitter module from SAFE GUARD company.

It adopt the latest COFDM modulation and H.265 video coding technology, enable to support 4 channel IP inputs and digital video interfaces (SDI/CVBS), and capable for non-line-of sight (NLOS) transmission.

The module has achieved effective improvements in improving coding efficiency, reducing coding delay, algorithm optimization, anti-erro rate and the image quality which achieves the best image compression effect.

combined embedded design and ultra-linear digital predistortion RF design, integrated high-definition coding, digital modulation, full-band RF output all in one.

Support narrowband(1MHz), low latency, transparent data transmission which can help you to achieve a long-distance multi-channel simultaneous transmission by connecting a single transmitter in single frequency.

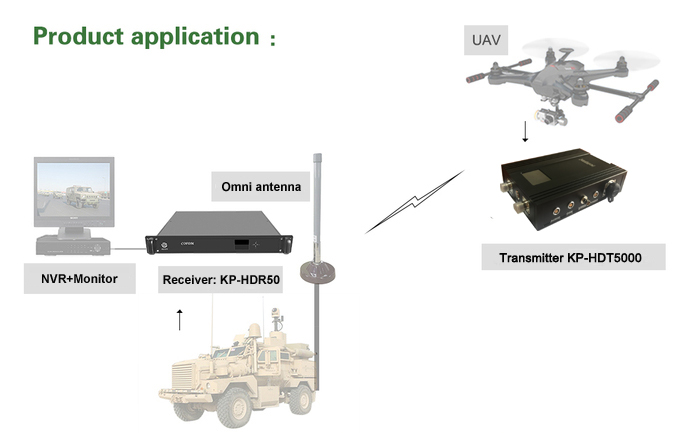

Especially for military, security, public security, and fire protection applications. It is widely used in high standard unmanned control system and intelligent control equipment for multi-channels video transmission.

Features

H.265 high efficiency full 1080p compression encodion

Triple video interfaces SDI/CVBS

COFDM modulation technology

Support 4-channel IP video stream simultaneous transmission

Full-band / ultra-narrow band / multi-bandwidth (1M/2M/4M/8M)

Transparent network protocol and high capacity of transfer rate

Specifications: :

Dingshen is a leading of High-tech global enterprise in developing and manufacturing. Company established in 1998 and located in Shenzhen China. Specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok offers superior solutions that enable our customers to do their jobs even more effectively.

Dingshen has a very strong technical team and R&D capacity. we dedicated to developing the high level wireless mobile video surveillance system for application of Law enforcement and military, field forces, radar, R/C helicopter, security & protection, government departments, military, security systems, oil field, Vessel, large mines, factories and so on.

Last for 15 years, Dingshen continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments,especial for Unmanned aircraft vehicle(UAV), airborne area and soldier man-pack areas. COFDM modulation and TDDworking mode transmitter/receiver are our demonstrable advantages.All the products production must be in very strict quality management by using US original (HP) spectrum analyzer and Germany (Rohde & Schwarz) Network Analyzer.

The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.

Welcome to tell use your needs, we will try to meet your requirements and custom made a special device for you.” Your support and suggestions are our motivation”. We aim to provide our users worldwide exclusive advanced wireless videography system.
