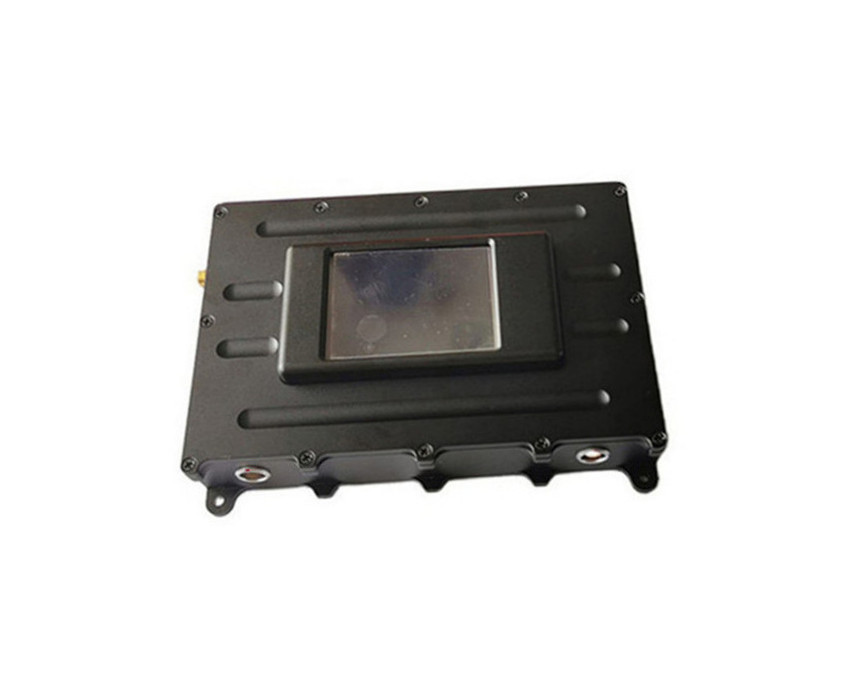

    1W-3W Portable Wireless Video Transmitter COFDM Hd Video Sender Live Broadcast

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT3W
    Price : >=1 Sets $3800
    Payment Terms : T/T
    Supply Ability : Quantity(Sets) 1 - 100000 >100000
    Delivery Time : 5-10 working days
    Certification : CE/FCC
    • Product Details
    • Company Profile

    1W-3W Portable Wireless Video Transmitter COFDM Hd Video Sender Live Broadcast

    Features/Functions

    1. Low delay, lightweight, companct design;
    2. Support Full- HD quality image;
    3.High security with AES128bits encryption;
    4. COFDM modulation;
    5.Built-in with HDMI or HD-SDI interface(Single selection);
    6. Adjustable frequency, RF power and bandwidth;
    7. H.264 and MPEG2 coding

    Ding Shen found in 1999 which is a leading global technology business specializing in the provision of advance RF wireless communications to the broadcast, public surveillance and defense industries. By continuously investing in innovation and combining exceptional products and services, delivers superior solutions that enable our customers to do their jobs even more effectively - and set us apart.


    Ding Shen is dedicated to developing the high level wireless mobile video surveillance system for application of Law enforcement and military, government, R/C helicopter, ECCM, Radar, satellite, IP MESH, agriculture industry and commercial such as photography and videography. We have a strong technical and R&D capabilities,produce research and production backbone from the previous state-run 806 plants and 54 Institute.


    Ding Shen continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments, especial for Unmanned aircraft vehicle(UAV), airborne area and soldier man-pack areas. COFDM modulation and TDD working mode transmitter/receiver are our demonstrable advantages.All the products production must be in very strict quality management by using US original (HP) spectrum analyzer and Germany (Rohde & Schwarz) Network Analyzer.


    Our products have been exporting to more than 35 countries, epecially to Middle-East,Europe,South Africa, Asia areas.Welcome to tell use your needs,then we will give you the solutions or customize a new model accordingly.Your support and feedback are our motivation.We aim to provide our users worldwide exclusive advanced wireless transmission system.

    Transmitter parameter:

    Power section


    DC InputDC11V~DC16V
    Working Current1.1A DC12.5V

    Transmitter section


    Frequency range Output250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request.
    ModulationCOFDM
    RF bandwidth4/8MHz(adjustable)
    Power output1-3W(adjustable),in 1dB step
    SHG>52dBc
    EncryptionAES128/256bits
    ConstellationQPSK,16QAM,64QAM
    FEC1/2,2/3,3/4,5/6, 7/8
    Guard Interval1/32,1/16,1/8,1/4
    Carrier2K
    FlatnessFull band≤2dB,8MHz0.5dB
    AV InterfaceHDMI/SDI(have to choose one)
    CNR(weighting)58dB
    Sloping field SNR(unweighted)50dB

    Analog Audio


    Balanced audio input rangeVmax=±15V
    Unbalanced audio input rangeVmax=3Vpp
    HD interfaceSDI/HDMI(single selection)
    EncryptionAES 128/265 bit / ALLTECH Basic scrambling
    KIIMPOK TECHNOLLOGY CO..,, LLIIMIITED D
    StandardSMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
    Input range800±80(mV)
    VersionsHDMI 1.3
    HDCP protocolYes

    Encoding support


    AV rate64,96,112,128,160,192,224,256,320,384Kbps(adjustable)
    Audio encoding modeMPEG1 Layer2
    CBER<2.0E-4
    Video resolutionMaximum 1920×1080P/I@ 60P
    Video codingH.264
    Video rate500kbps-16.68Mbps(autoadaptation)
    FormatYCbCr4:2:2
    OperatingTemperature-25℃~55
    Storage Temperature-40℃~70
    Distance20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)

    Appearance characteristics


    Dimension167*90*25mm
    Weight515g
