    NLOS 2W COFDM Receiver Miniature Wireless Video Transmitter

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT2W
    Price : >=1 Sets $4900
    Payment Terms : T/T
    Supply Ability : Quantity(Sets) 1 - 100000 >100000
    Delivery Time : 5-10 working days
    Certification : CE/FCC
    • Product Details
    • Company Profile

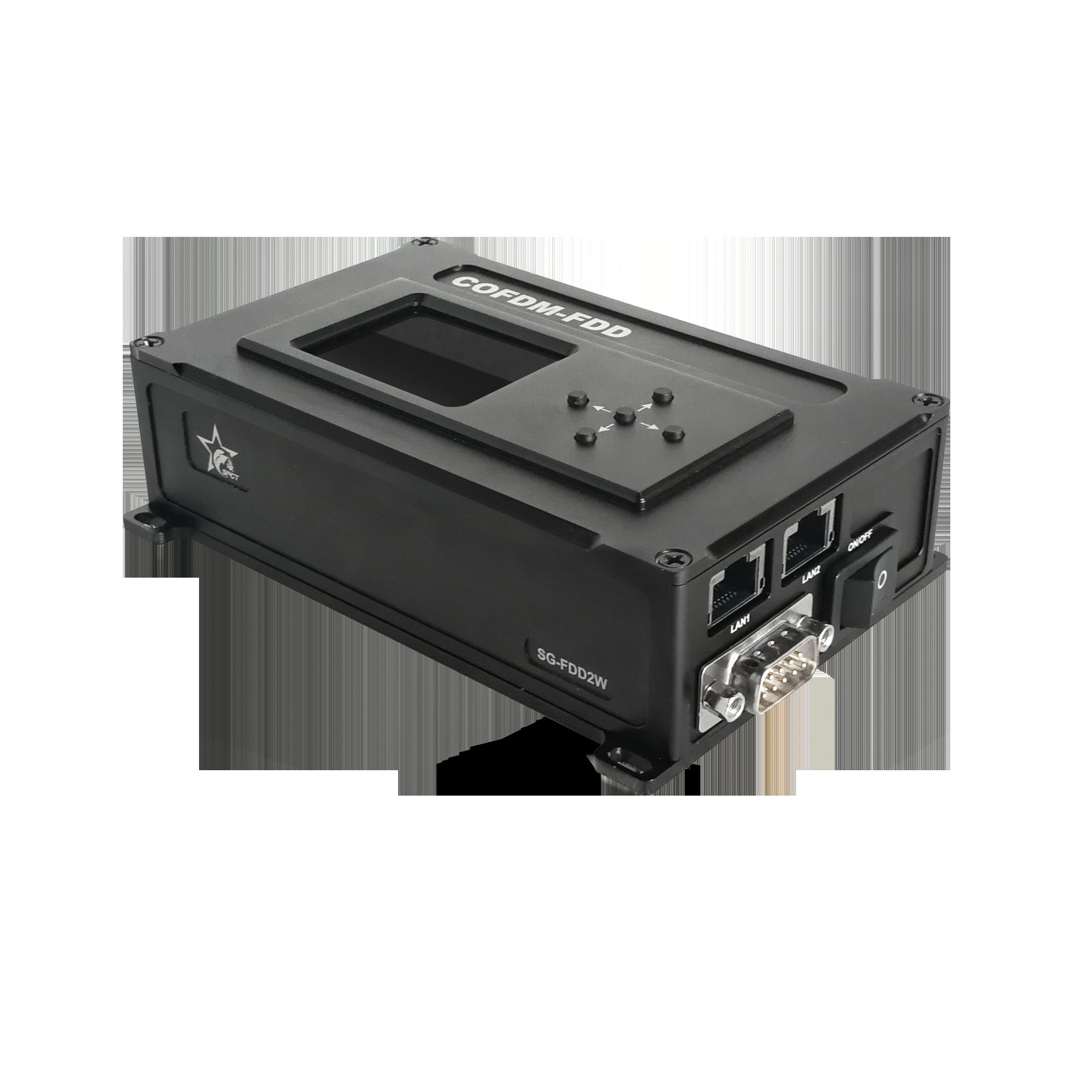

    NLOS 2W COFDM Receiver Miniature Wireless Video Transmitter

    NLOS 2W small size FDD COFDM Digital transceiver for public security system


    DS-2W is a new generation digital 2 way duplex transceiver integrated with COFDM (Coded Orthogonal Frequency Division Multiplexing) modulation and FDD (Frequency-division duplexing) technology, and so have NLOS (non-line-of sight) diffraction and strong anti-interference ability. It has two different uplink & downlink carrier frequencies for signal transmitting and receiving, also compatible with super-linear digital predistortion, super narrowband (1MHz), low-latency and high-sensitivity capacity, that makes it ideal for long distance IP video data transmission.

    As its lightweight and small size, It is mainly used for public security system, emergency, system, police, military etc secured video data transmission.


    Feature:


    l COFDM & FDD modulation

    l Great transfer rate for uplink and downlink

    l Transparent IP Ethernet and serial data sync communication

    l Dynamic AES encryption 128bits

    l RF Narrowband 1/2/4/8MHz available

    l Work well in NLOS fast moving condition

    l Integrated design, super linear

    l Small in size, lightweight and low consumption

    l Easy deployment, Simple operation


    Specification:

    ModelSG-FDD2W
    Power supplyDC12V/1.5A
    TX output frequency300-3300MHz selection, step in 1MHz
    RX output frequency300-3300MHz selection, step in 1MHz
    RF bandwidth1/2/4/8MHz
    RF power output33dBm
    Encryption/decryption modeAES128 bits(user-defined password)
    ModulationCOFDM 2K
    Transfer rate2x30 Mbit/s uplink and downlink
    RF connectorSMA type *2
    EthernetStandard RJ45 port *2
    Serial portRS232 serial port
    Baud rate115200bps maximum
    LCD panel with keypadEasy to set the related parameters
    Dimension131*92*39mm
    Weight527g
