    High Quality COFDM Modulation Wireless Audio Video Transmitterc&Receiver With AES128 Bits

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT20W
    Price : $4,200.00 - $4,700.00 / Set
    Payment Terms : T/T
    Supply Ability : 1 - 100000
    Delivery Time : 7-10 working days
    Certification : CE/FCC
    • Product Details
    • Company Profile

    High Quality COFDM Modulation Wireless Audio Video Transmitterc&Receiver With AES128 Bits

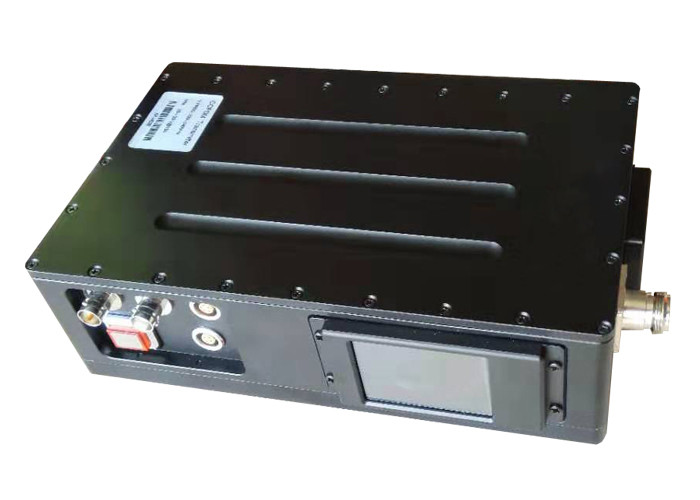

    DS-HDT20W is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. It works well in fast-moving transmission.

    battery.

    Besides the external battery, there are also have an power charger input for battery charging after running out of the power.

    WIFI and GPS function are workable, which is easy for user to identify each front end matchable IP MESH node's location.

    IP MESH Feature

    1. 6U rack chassis station shock proof

    2. Smart command station with computer integrated

    3. Wifi/GPS are optional to be built in

    4. Can customize stronger RF power

    Features of surveillance equipment long distance wireless video transmitter

    1) Full HD resolution 1080P/1080I@30fps;

    2) Support 15-25W RF power;

    3) COFDM modulation,H.264 video compression mode;

    4) Built in with HDMI/HD-SDI port (optional);

    5) Support L/R stereo audio in/out;

    6) Small in size and lightweight;

    7) strong heat resistance capacity;

    8) 2/2.5/4/8MHz RF bandwidth;

    9) PAL/NTSC self adaption;

    10) Low delay.

    Transmitter parameter:

    Modulate COFDM
    Working voltage DC12V
    Working current ≤6A@DC12V
    RF bandwidth 2/4/6/8MHz (adjustable)
    Frequency 300-900Mhz or other frequency customized
    Output power 10-20W adjustable
    Video input HDMI/SDI; CVBS
    Data input (option) RS232/TTL, up to 115200bps
    Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps
    Video coding MPEG-2/H.264/H265
    Video rate 512Kbps-16Mbps (adjustable)
    Encryption AES 128 bits
    AV input 1Vp-p, 75Ω. Left and right channel
    Video system PAL/NTSC
    Power flatness Full band ≤1.5dB
    CNR ≥25dBc@48dBm
    Second harmonic ≥60dBc
    CBER <2.0E-4
    VBER <1.0E-7
    MER 32dB
    Carrier 2k 4k 8k
    Constellation QPSK,16QAM,64QAM (option)
    FEC 1/2, 2/3, 3/4, 5/6, 7/8 (option)
    Guard Interval 1/32, 1/16, 1/8, 1/4 (option)
    Working Temperature -25°C~55°C
    Dimension 220*140*66mm
    Weight 2.5kg

    Receiver parameter:

    Frequency 300-900MHz or other frequency customized
    Bandwidth 2/3/4/5/6/7/8MHz (option)
    RF input level -94dBm~0dBm(8M)/-98dBm~0dBm(2M)
    RF input impedance 50Ω
    RF input type N type
    Modulation COFDM
    Constellation QPSK,16QAM,64QAM(adjustable)
    FEC 1/2,2/3,3/4,5/6,7/8(adjustable)
    Carrier 2k
    Guard Interval 1/32,1/16,1/8,1/4(adjustable)
    Video coding MPEG-2/H.265
    Screen 4:3 16:9
    Video resolution 1080P@4MHz
    Audio output Stereo unbalance 300/ 200mv
    AV output 2 Audio output + 2 Video output. SDI/HDMI/ASI
    Working voltage AC220V/DC12V <1A
    working temperature -20~+50
    Dimension

    480*260*45(1U chassis)

    Weight

    1.5kgHigh Quality COFDM Modulation Wireless Audio Video Transmitterc&Receiver With AES128 BitsHigh Quality COFDM Modulation Wireless Audio Video Transmitterc&Receiver With AES128 BitsHigh Quality COFDM Modulation Wireless Audio Video Transmitterc&Receiver With AES128 BitsHigh Quality COFDM Modulation Wireless Audio Video Transmitterc&Receiver With AES128 BitsHigh Quality COFDM Modulation Wireless Audio Video Transmitterc&Receiver With AES128 Bits
