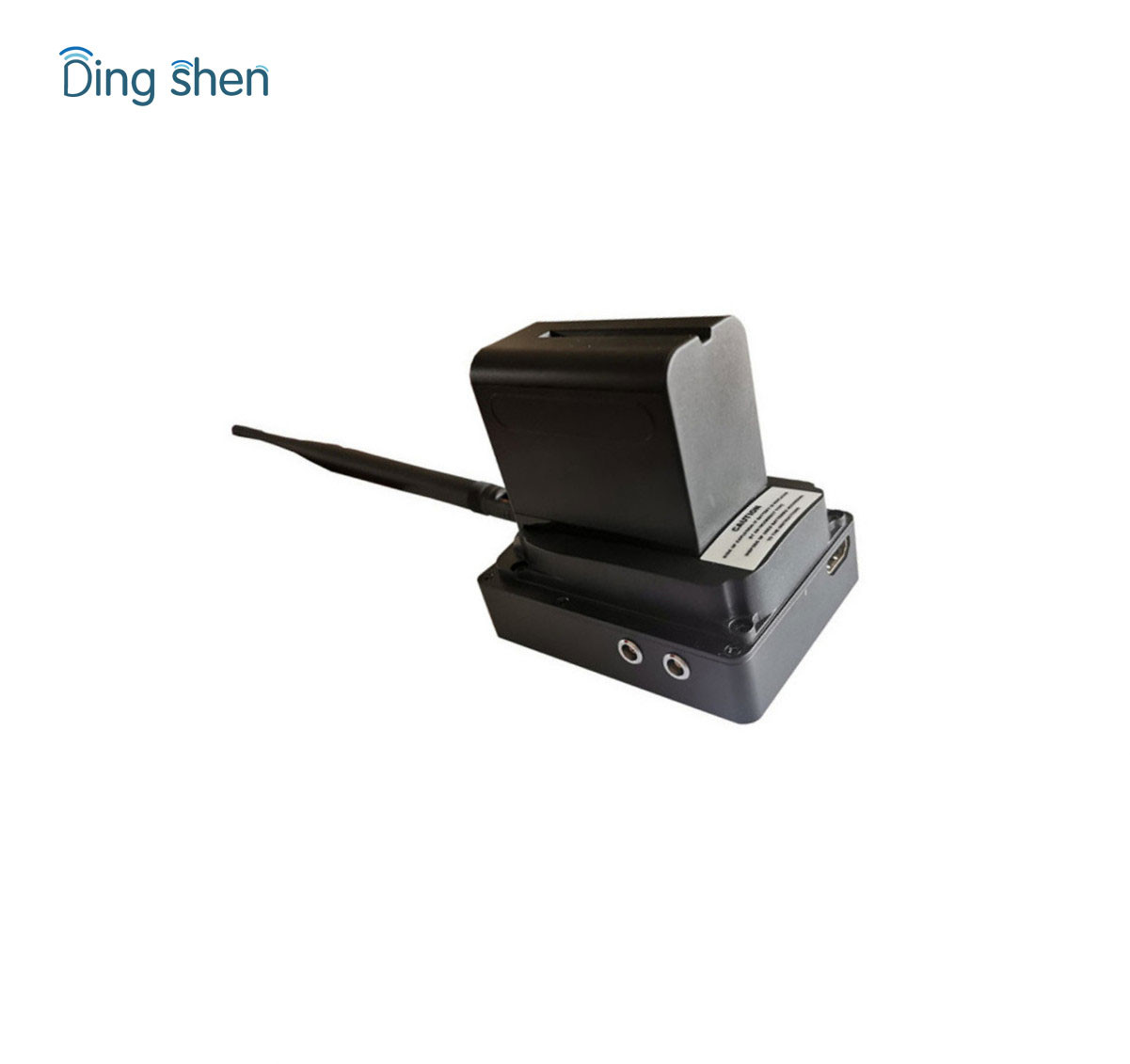

    Compact Uav Video Transmitter And Receiver 1Watt From Air To Ground Station

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT1W
    Price : Negotiaiton
    Payment Terms : T/T
    Supply Ability : 3,000pcs per month
    Delivery Time : 3-7 days
    Certification : CE/FCC
    • Product Details
    • Company Profile

    Compact Uav Video Transmitter And Receiver 1Watt From Air To Ground Station

    Features/Functions

    1. COFDM modulation,
    2. H.264/MPEG self-adaption compression;

    3. Support NLOS, high-speed mobile transmission;
    4. Small dimension, light weight, easy to carry, heat dissipation of aluminum case;
    5. High performance, high capacity power of Li battery(replaceable);
    6. Narrow bandwidth for expended range, and different video resolution;


    Radio Frequency Intercom System 5.8ghz Video Drones with Long Flight Time Point to Point 1080p Video Transmitter


    Features:


    1. COFDM modulation, H.264 compression;


    2. Support 1080P/720P resolution;

    3.High performance, high capacity power of Li battery(replaceable);
    4. Narrow bandwidth for expended range, and different video resolution;


    5. High performance,high capacity power of Li-battery (replaceable);


    6. Small dimension,light weight,easy to carry ,heat dissipation of aluminum case;


    Transmitter parameter:


    Frequency300-900Mhz or other frequency customized
    ModulationCOFDM
    Consumption<40W
    EncryptionAES 128 bits
    ConstellationQPSK(4QAM),16QAM,64QAM
    FEC1/2 2/3 3/4 5/6 7/8
    Guard Interval1/32 1/16 1/8 1/4
    Carrier2K,8K
    Bandwidth2/3/4/6/7/8MHz (option)
    Transfer rate6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
    RF power1 watt
    Video inputHDMI
    Video codingMPEG-4/H.264
    Video resolution1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
    Working voltageDC12V
    Working Temperature-20℃ -- +55℃
    Dimension72*98*32mm
    Weight190g without battery; 250g with battery
    Box colourBlack
    Antenna portN type

    Receiver parameter:


    Frequency300-900Mhz (option) or other frequency customized
    Bandwidth2/3/4/5/6/7/8MHz (option)
    RF input level-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
    RF input impedance50Ω
    RF input typeN type
    ModulationCOFDM
    ConstellationQPSK,16QAM,64QAM(adjustable)
    FEC1/2,2/3,3/4,5/6,7/8(adjustable)
    Carrier2k
    Guard Interval1/32,1/16,1/8,1/4(adjustable)
    Video coding MPEG-4/H.264
    Screen4:3 16:9
    Video resolution1920*1080P/I@4Mhz
    Audio outputStereo unbalance 300/ 200mv
    AV output2 Audio output + 2 Video output; HDM-I
    Working voltageAC220V/DC12V <1A
    working temperature-20~+50
    Dimension483*300*44mm
    Weight1.5kg


    Compact Uav Video Transmitter And Receiver 1Watt From Air To Ground StationCompact Uav Video Transmitter And Receiver 1Watt From Air To Ground StationCompact Uav Video Transmitter And Receiver 1Watt From Air To Ground StationCompact Uav Video Transmitter And Receiver 1Watt From Air To Ground Station
