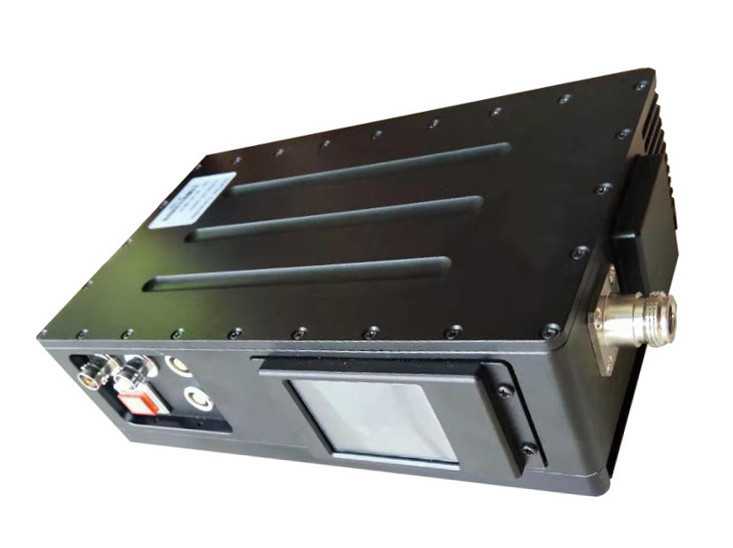

    OEM COFDM Long Range Wireless Video Transmitter And Receiver With AES128 Bits

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT20W
    Price : >=1 Sets $4900
    Payment Terms : T/T
    Supply Ability : Quantity(Sets) 1 - 100000 >100000
    Delivery Time : 5-10 working days
    Certification : CE/FCC
    • Product Details
    • Company Profile

    OEM COFDM Long Range Wireless Video Transmitter And Receiver With AES128 Bits

    Introduction

    10km Wireless Transmitter And Receiver Manpack Radio

    10km Wireless Transmitter And Receiver Manpack Radio is a new long range wireless aerial transmiter.

    10km Wireless Transmitter And Receiver Manpack Radiois with the latest technologies of COFDM, MPEG-4 image compression,and DVD quality video.

    10km Wireless Transmitter And Receiver Manpack Radio has a good NLOS (Non line-of -sight) wireless long range transmission, compact size, goog heat resistance, strong power amplifier for longer-range transmission.

    10km Wireless Transmitter And Receiver Manpack Radio (can add SDI interface as a HD Cofdm wireless video transmitter, or add data port as cofdm data video transmitter, or ethernet port as aerial tranmitter.

    10km Wireless Transmitter And Receiver Manpack Radio is encrypted with AES128/256bits, this machines performs well in fast-moving wireless transmission.

    Transmitter parameter:

    ModulateCOFDM
    Working voltageDC12V
    Working current≤6A@DC12V
    RF bandwidth2/4/6/8MHz (adjustable)
    Frequency300-900Mhz or other frequency customized
    Output power10-20W adjustable
    Video inputHDMI/SDI; CVBS
    Data input (option)RS232/TTL, up to 115200bps
    Video resolution1920*1080P/I@60fps; 1280*720P/I@60fps
    Video codingMPEG-2/H.264/H265
    Video rate512Kbps-16Mbps (adjustable)
    EncryptionAES 128 bits
    AV input1Vp-p, 75Ω. Left and right channel
    Video systemPAL/NTSC
    Power flatnessFull band ≤1.5dB
    CNR≥25dBc@48dBm
    Second harmonic≥60dBc
    CBER<2.0E-4
    VBER<1.0E-7
    MER32dB
    Carrier2k 4k 8k
    ConstellationQPSK,16QAM,64QAM (option)
    FEC1/2, 2/3, 3/4, 5/6, 7/8 (option)
    Guard Interval1/32, 1/16, 1/8, 1/4 (option)
    Working Temperature-25°C~55°C
    Dimension220*140*66mm
    Weight2.5kg

    Receiver parameter:

    Frequency300-900MHz or other frequency customized
    Bandwidth2/3/4/5/6/7/8MHz (option)
    RF input level-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
    RF input impedance50Ω
    RF input typeN type
    ModulationCOFDM
    ConstellationQPSK,16QAM,64QAM(adjustable)
    FEC1/2,2/3,3/4,5/6,7/8(adjustable)
    Carrier2k
    Guard Interval1/32,1/16,1/8,1/4(adjustable)
    Video codingMPEG-2/H.265
    Screen4:3 16:9
    Video resolution1080P@4MHz
    Audio outputStereo unbalance 300/ 200mv
    AV output2 Audio output + 2 Video output. SDI/HDMI/ASI
    Working voltageAC220V/DC12V <1A
    working temperature-20~+50
    Dimension480*260*45(1U chassis)
    Weight1.5kg
