    64QAM Digital Wireless AV Transmitter 1080P For Drone Helicopter

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HD803
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 3,000pcs per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

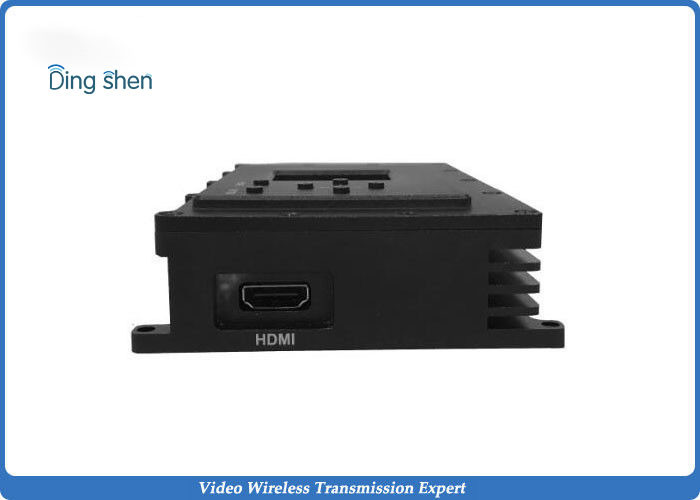

    64QAM Digital Wireless AV Transmitter 1080P For Drone Helicopter


    Transmitter specification:


    Power supplyDC 7-16V input/output
    Power consumption<5W
    ModulationDVB-T
    Modulation typeQPSK/16 QAM/64 QAM
    Scrambling wayManual settings ON/OFF
    RF power output1-3Watt (2K mode)
    RF bandwidth8MHz
    AV inputHD
    ResolutionHD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
    Video compressionH.264/MPEG-4/MPEG-2
    Antenna output50Ω, SMA or “N” type Connector
    Working frequency300MHz~999MHz (optional)
    Step frequency1K Steps
    Guard interval(GI)1/4, 1/8, 1/16, 1/32 (optional)
    Code rate (CR)1/2, 2/3, 3/4, 5/6, 7/8 (optional)
    FFT2K or 8K
    MER>34dBm
    LCD displayShowing working status and parameters
    Parameter setupManual operation by buttons
    Dimension153*100*34mm
    Weight485g

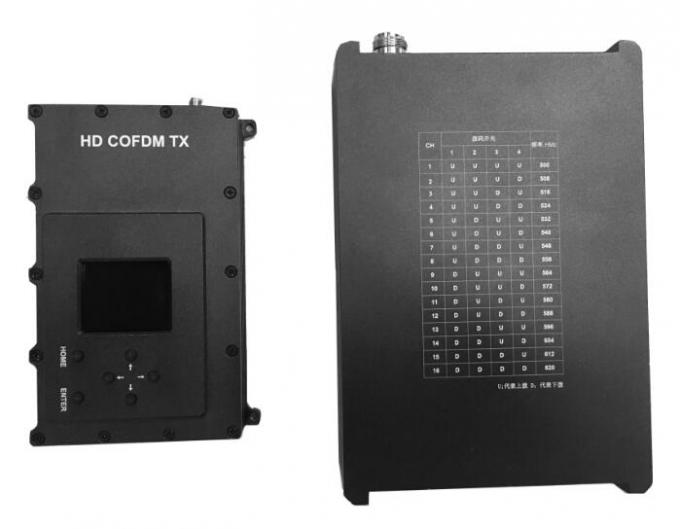

    COFDM Receiver Feature:


    Working VoltageDC input 7-24V
    Power consumption<4W
    ModulationDVB-T
    Sensitivity-82dBm (64QAM, 8M/FFT:8K, GI:1/32, CR:7/8)
    Working frequency300MHz~999MHz(optional), 16 groups of frequency choice
    RF bandwidth8MHz
    AV outputHD
    ResolutionHD1080P(1920*1080),compatibility 1080I, 720P,480P and standard resolution
    Video compressionH.264/MPEG-4/MPEG-2
    RF connectorN type
    LED lightTurns red when the machine is power on
    Work indicatorAutomatically search signal after power-on, blue color and flash; While receive signal, the blue light remains on.Otherwise, lights out.
    Scrambling wayManual settings ON/OFF
    Dimension197*124*51mm
    Weight1024g

    Features of point to point microwave radio modem 5~8km video data link for rotorcraft

    • Full HD video transmission, support1080P@60fps;
    • Support two way data transmission, and one way HD video audio transmission
    • Provide high-speed large data stream channel & adaptive dynamic allocation technique;
    • Support transparent PTP network technique;
    • Non-Line of Sight (NLOS) & high-speed mobile signals communication;
    • Standard RS-232/RS-485/RS422, RJ-45 Ethernet ,HDMI interfaces;
    • Support high standard and technical-grade application;
    • Small size, lightweight and easy to carry;

    64QAM Digital Wireless AV Transmitter 1080P For Drone Helicopter64QAM Digital Wireless AV Transmitter 1080P For Drone Helicopter


    Main feature:


    1) Compact designed,lightweight;
    2) Full hd resolution,low delay;
    3) High performance,low cost

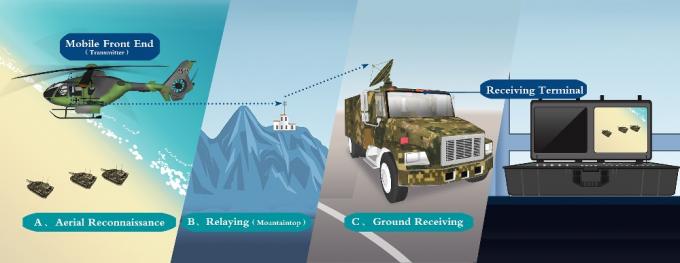

    4) Special for UAV/Drones long range video communication;
    5) Maximum rf output 3Watt,can support 40km LOS range.
