200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier

    Buy cheap 200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier from wholesalers

    Buy cheap 200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier from wholesalers
    • Buy cheap 200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier from wholesalers
    • Buy cheap 200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier from wholesalers

    200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-HDT2W
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1000PCS per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier

    30 km /40 km 1.2 Ghz Surveillance Equipment Remote Control UAV Transmitter Mining Security Tools TP-Link Digital Antenna


    ultra-low latency H.264 COFDM HD portable wireless video transmitter, adopted the 4th generation multi-carrier modulation technology and highly efficient/ innovative H.264 compression coding. Greatly improve coding efficiency,decrease coding delay, optimize algorithm, anti-bit error rate and improve image quality, which use the lowest bit rate to achieve the best image compression.


    Specification:


    VoltageDC11V~DC16V
    Current≤1.1A/DC12.5V

    Video Input


    AV: 3.5mm port, connect to standard resolution analog video signal
    HDM-I/CVBS: support HD1080P,720P,576,480;
    Frequency300-4400MHz (optional)
    Bandwidth2/2.5/4/8MHz(adjustable)
    Output power2 watt
    Data encryptionAES 128bit (user-defined password)
    ModulationCOFDM
    FEC1/2, 2/3, 3/4, 7/8
    Guard Interval1/32, 1/16, 1/8, 1/4
    Video CompressionH.264
    Standard Video FormatPAL/NTSC (auto adaptation)
    Parameter control methodSet the related parameters through the control panel
    RF InterfaceSMA
    Working temperature-20℃~75℃
    Transmission distance1-40km max LOS (on air)

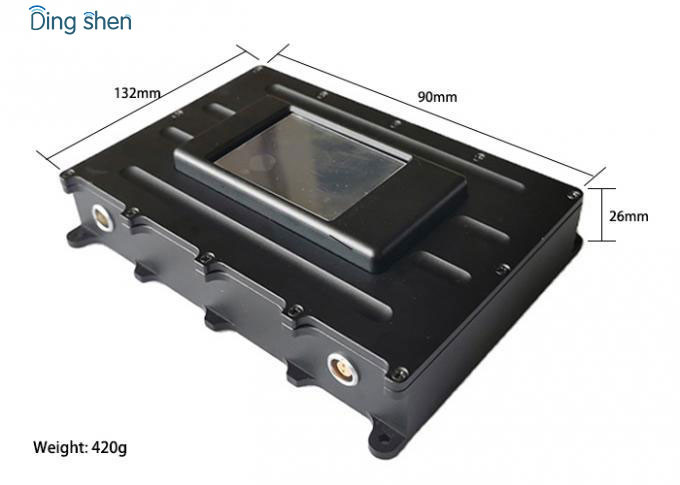

    Dimension132*90*26mm
    Weight420g

    200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier


    200kps 2W COFDM Video Transmitter DC12.5V With 8k Carrier



    Specification:


    Frequency300-4400MHz (subdivided)
    Memory1TB
    LCD monitor17 inch
    RF level Input-105dBm
    RF interfaceN(F)
    AV outputBNC, HDMI
    ModulationCOFDM
    Power supplyAC220V / DC12V
    Bandwidth2/2.5/4/8MHz(adjustable)
    ConstellationQPSK, 16QAM
    Data PTZ controlStandard RS485
    FEC1/2,2/3,3/4,5/6,7/8(optional)
    Guard interval1/32,1/16,1/8,1/4 (optional)
    Video formatPAL/NTSC
    Video decodingH.264
    Resolution1080P/i, 720P/i
    Lines of horizontal625 or 525 Line
    Audio outputAnalog stereo left and right channels
    Data encryptionAES128 user-defined password
    VoltageAC220V±20V, DC14V~DC16V
    Work environment-30~70° C
    Built in battery65000mA
    Size520*430*210mm
    Weight18kg

    Our Service



    1. Provide professional system design and construction;
    2.. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
