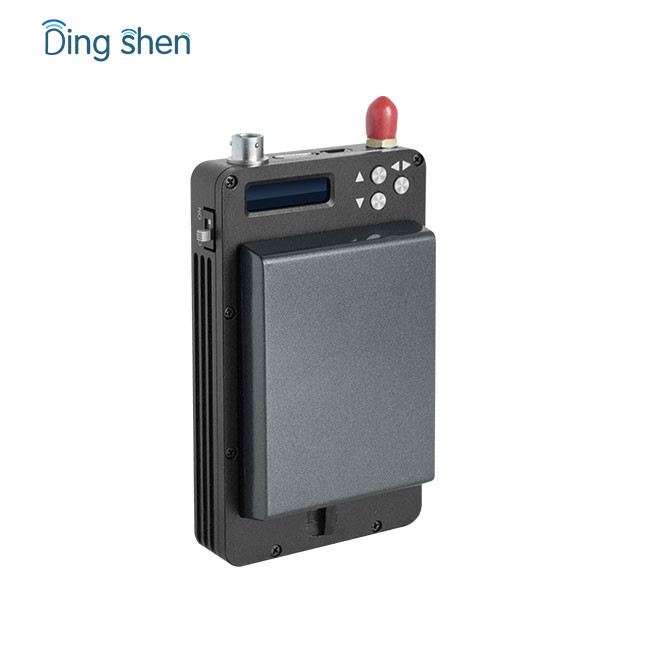

    Lightweight Wireless Hd UAV Video Transmitter 300MHz 720P Resolution

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-SFG01
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1000PCS per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Lightweight Wireless Hd UAV Video Transmitter 300MHz 720P Resolution

    Features of best choice light weight hd transmitter sky to ground

    * NTSC/PAL automatically adapt , support user adjustable;
    * Supports high-speed mobile NLOS ( Non Light Of Sight ) transmission;
    * Lithium battery for power supply (continuous working time is 1 hour max)
    * Adjustable working frequency, bandwidth, RF power and etc


    * Modular design and highly integrated

    * COFDM modulation, Stable transmission
    * H.264 video compression, DVD video quality;

    Product Parameters

    Transmitter parameters of best choice light weight hd transmitter sky to ground

    ModulationCOFDM
    Power supplyDC7.5-12V/ 0.9A-13A
    Frequency300-900MHz (optional)
    Bandwidth2/2.5/4/8M (adjustable)
    Power Output1Watt
    AV Interface

    2.5mm jack for camera (CVBS)

    3.5mm jack for AV (CVBS)

    RF InterfaceN (type)
    Video FormatPAL/NTSC(self-adaption)
    Battery working time1 hour
    OperatingTemperature-25~55
    Storage Temperature-40~70
    Transmission Distance

    20km LOS/NLOS distance (for air to ground) if over 300m high

    300m NLOS distance (for body worn)

    Size100*60*16mm
    Weight133g(without battery); 226g(with battery)

    Receiver:


    Frequency300-4400MHz (option)
    Bandwidth2/2.5/4/8MHz (adjustable)
    RF Level Input-105dBm~-20dBm
    RF Impedance50Ω
    RF InterfaceN female
    ModulationCOFDM
    ConstellationQPSK,16QAM
    FEC1/2,2/3,3/4,5/6,7/8
    Guard Interval1/32,1/16,1/8,1/4
    Carrier2K,8K
    Video DecodingH.264
    ResolutionStandard 720P
    Audio OutputAnalog stereo left and right channels
    DecryptionAES128 bit
    Working VoltageAC220V / DC12V
    Dimension430*310*65mm
    Weight3.5 kg

    Lightweight Wireless Hd UAV Video Transmitter 300MHz 720P ResolutionLightweight Wireless Hd UAV Video Transmitter 300MHz 720P Resolution

    Application
