    75-100w Rf Linear Power Amplifier 900-980mhz 48.5dbm~50dbi Long Range Pa Dc 27v

    75~100W RF Linear Power Amplifier 900-980MHz 48.5dBm~50dBi Long Range PA DC 27V


    Specification:


    No.ItemSpecification
    1

    Frequency Range

    GSM

    900-980MHz
    Customized
    2Gain50dB
    3Max RF Output Power48.5dBm-50dBm
    4Input Range10dBm
    5Gain Adjust Range31dB
    6Gain Adjust Step1dB
    7In-Band Ripple2dB
    8Input/Output VSWRLess 1.5
    9Working Voltage27VDC
    10Working Current75W8A
    100W9.1A
    11RF Input/ Output PortsSMA-Female

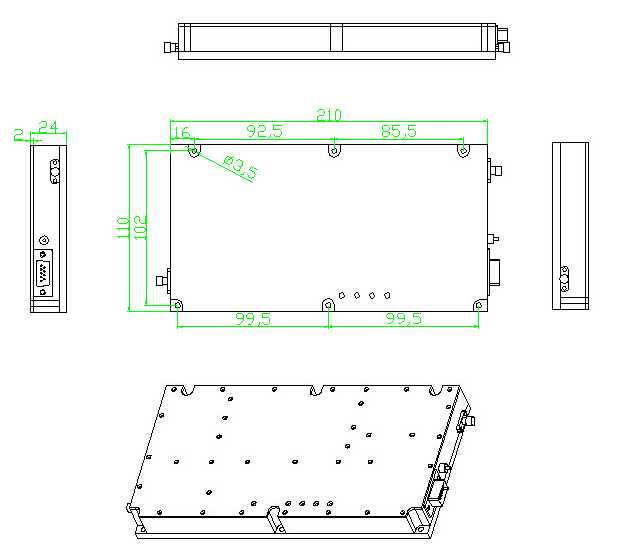

    12Dimension210x110x25mm
    13Weight2kg
    14Power Supply InterfacePull-core Capacitance
    15Other

    Shut-down over High VSWR (Option)

    Shut-down over High temperature (Option)

    Auto-restart after 30second against shut-down (Option)

    16I/O Port

    DB9 Male

    (Option)

    RS485 (With free PC software)
    Setting: ON/OFF, ATT, Gain, Alarm Temperature, Alarm VSWR;
    Monitoring: RF Power, VSWR, Temperature, ATT, Gain, Alarms
    PIN1,PIN2: RS485A; PIN3,PIN4: RS485B
    DB15 FemalePIN1: 1dB Attenuation(Hang in air or add 5VDC: No attenuation; Grounding: attenuation)
    PIN2: 2dB Attenuation(Hang in air or add 5VDC: No attenuation; Grounding: attenuation)
    PIN3: 4dB Attenuation(Hang in air or add 5VDC: No attenuation; Grounding: attenuation)
    PIN4: 8dB Attenuation(Hang in air or add 5VDC: No attenuation; Grounding: attenuation)
    PIN5:16dB Attenuation(Hang in air or add 5VDC: No attenuation; Grounding: attenuation)
    PIN7: V/L, VSWR (Reflected RF Power Indicator; Max voltage:4V)
    PIN10:P/L (Output RF Power Indicator; Max voltage:4V)
    PIN11: LE (Hang in air or grounding: Enable; input +5V: Unable )
    PIN14: T/LTemperature:0.02V/1Celsius ,0.3V for 30 Celsius
    PIN15: GND
    PIN6, PIN8, PIN9, PIN12, PIN13 : NC
