    10.1 Inch UHF Band COFDM Diversity Receiver Wireless HD

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-430HD
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1000PCS per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

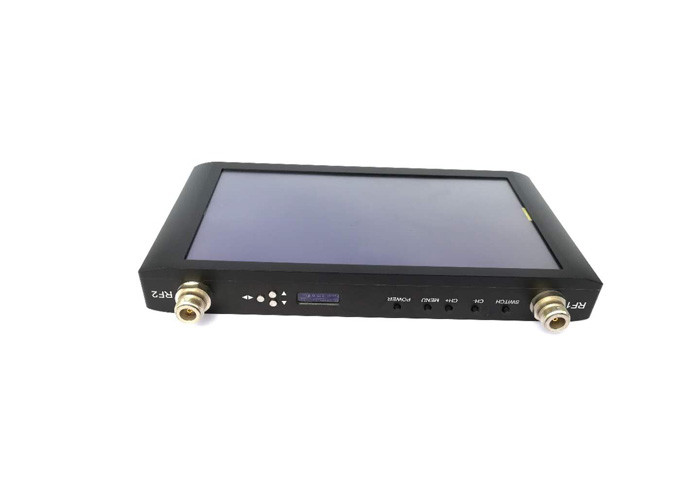

    10.1 Inch UHF Band COFDM Diversity Receiver Wireless HD

    10.1 inch UHF band cofdm video receiver full HD 1080P hand-held dual antenna


    Product introduction


    DS-430HD 10.1 inch full HD hand-held video Receiver,small size,light weight.The use of advanced multi-carrier diversity reception technology to support high-speed mobile and non-line sight reception.Use full HD 1920X1200 10.1 inch 16:10 color TFT-LCD to display,provide simple operation and perfect image,Which are widely used in security, fire fighting, radio and television,emergency communications, unmanned aerial vehicles and other fields.


    Product features


    ●Support COFDM mode H.264/MPEG2 full-featured video decoding

    ●Provide 3.5mm standard audio video output interface

    ●Support dual antenna multi-carrier diversity reception

    ●10.1 inch High-definition 1920X1200 display screen

    ●Support HD1080P, 720P, 576,480

    ●Battery integrated design, small size, light weight, high reliability


    Technical characteristics


    ModelDS-430HD
    VoltageDC12V

    Built-in lithium battery,

    It can continuously work over 4 hours

    Receive sensitivity-104dBm/2MHz
    AV outputAudio:3.5mm port,Analog audio output
    CVBS:3.5mm port,Analog video output
    Video display10.1 HD TFT LCD
    Pixel format1920X1200
    Radio Frequency300-860MHz,stepping 1MHz
    Bandwidth2/2.5/4/8MHz
    DemodulationCOFDM
    DecodingMPEG2/H.264
    DecryptionDynamic 128 bit AES decryption
    Parameter control modeThrough control panel to set the relevant parameters
    RF signal input portN-type(50Ω)high performance dual channel diversity reception
    Dimensions158mm*262mm*33mm
    Weight1500g
