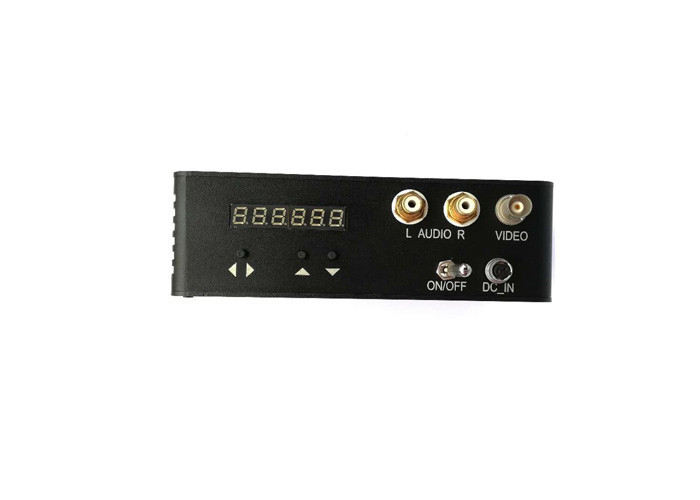

    2 Channel Long Range Video COFDM Wireless Transmitter Non Line Of Sight 32dbm

    Ask Lasest Price
    Brand Name : Ding Shen
    Model Number : DS-220T
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1000PCS per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    2 Channel Long Range Video COFDM Wireless Transmitter Non Line Of Sight 32dbm

    Product Features

    Support WIFI connection and GPS/beidou positioning
    Support network interface transmission, build a remote local LAN
    Supports large bandwidth, point-to-point largest payload support 30 Mbps
    Support automatic frequency hopping function, can automatically search the best frequency point in wireless environment
    Support up to 33 dBi transmission power
    Support 3/ 5 /10 /20 MHZ bandwidth channel


    Application

    supports duplex transmission and up to 50km wireless video downlink from drone/UAV to ground control station with high quality and stable image signal. It is also suitable for image transmission with the ground, and can be used in the fields of public security investigation, military operations, fire special robots, etc.


    2 Channel Long Range Video COFDM Wireless Transmitter Non Line Of Sight 32dbm


    Key Features


    ●Supports high-definition analog video NTSC/PAL input

    ●Adopt COFDM modulation technology, MPEG-2 image compression processing

    ●Highly integrated modular design, small size

    ●Support NLOS high speed mobile transmission

    ●Full aluminum alloy design, good heat dissipation


    Technical Characteristic


    ModelDS-220T
    Input voltageDC 12~15V
    Working Current2A_12V
    Video inputCVBS:480i/576i
    Audio channel2 channel
    Working bandwidth2.0/4.0/8.0MHz
    Operating frequency300~2400MHz,stepping 1MHz
    Output power32dBm
    RF interfaceN type
    video encodingH.264
    ModulationCOFDM
    ConstellationQPSK
    Parameter control methodSet related parameters through LED digital tube
    Dimension158mm*100mm*52mm
