RJ45 IP Transceiver UAV Video Data Link HD COFDM Video Transmitter AES Encryption

Bidirectional IP Ethernet Transceiver Drone Wireless Video Transmitter with AES Encryption

DS-FDD5W is a new COFDM modulated digital transmitter and receiver integrated with frequency division duplex (FDD) technology. It adopts dual-mode RF transceiver architecture and system design and can operate at different carrier frequencies. It is very suitable for network solutions long distance communication.

Achieving ultra-narrowband (1MHz), low latency, and high sensitivity capabilities, making it ideal for long-distance transmission and non-line-of-sight (NLOS) applications. Adopting highly integrated embedded design, ultra-linear digital predistortion RF design, network, modem and demodulation, and full-band RF output integration help you complete the design of long-distance wireless links more conveniently and quickly.

It is mainly used for multi-channel video transmission that requires RS232 signals, high-standard unmanned control systems, intelligent control equipment wireless communications, etc.

feature:

COFDM modulation, different carrier frequency technologies
Low latency and end-to-end massive data sending.
High uplink and downlink transmission rates
Transparent IP Ethernet and Serial Data Synchronization Telecommunications
Dual band is ideal for long distance IP solutions
Dynamic AES encryption 128 bit
Narrowband 1M/2M/4M/8MHz optional
Works well in non-line-of-sight fast moving conditions
Integrated design, super linear
Small size, light weight, low power consumption

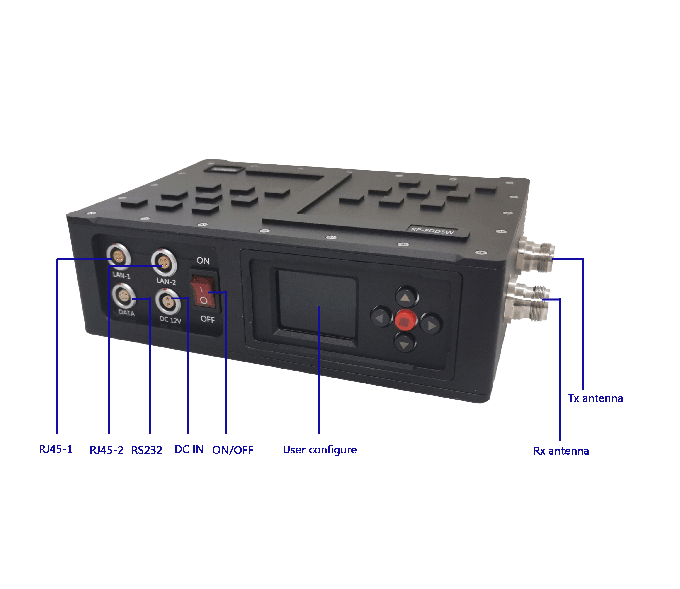

Simple operation, users can easily set relevant parameters through the LCD panel and keyboard

FDD-COFDM Network Radios Full Duplex Wireless Video Surveillance

Dingshen is a leading of High-tech global enterprise in developing and manufacturing. Company established in 1998 and located in Shenzhen China. Specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok offers superior solutions that enable our customers to do their jobs even more effectively.

Dingshen has a very strong technical team and R&D capacity. we dedicated to developing the high level wireless mobile video surveillance system for application of Law enforcement and military, field forces, radar, R/C helicopter, security & protection, government departments, military, security systems, oil field, Vessel, large mines, factories and so on.

Last for 15 years, Dingshen continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments,especial for Unmanned aircraft vehicle(UAV), airborne area and soldier man-pack areas. COFDM modulation and TDDworking mode transmitter/receiver are our demonstrable advantages.All the products production must be in very strict quality management by using US original (HP) spectrum analyzer and Germany (Rohde & Schwarz) Network Analyzer.

The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.

Welcome to tell use your needs, we will try to meet your requirements and custom made a special device for you.” Your support and suggestions are our motivation”. We aim to provide our users worldwide exclusive advanced wireless videography system.
